Guide TR430 35mm 384x288 Thermal Scope

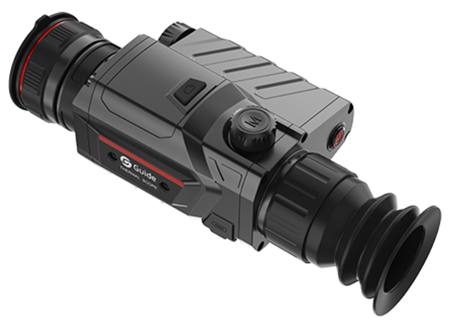

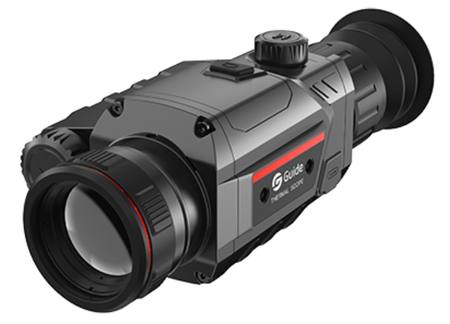

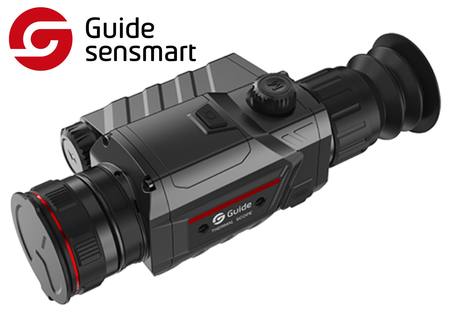

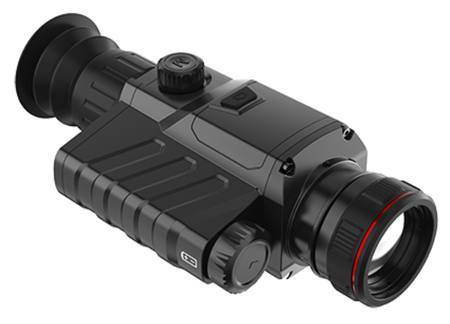

Guide TR430 Thermal Riflescope

TR Series thermal scopes are an economical civilian infrared thermal imaging scope that adopts high sensitivity thermal detector with three different lens options 25 mm, 35 mm, and 50 mm. The TR Series thermal scope offers sharp, detailed images with 384 × 288 IR resolution while retaining accuracy. TR thermal scopes also features a compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in harsh New Zealand weather.

This Thermal imaging unit runs with 18650 Button top type batteries (174169) or (454065)

Thermal Scope Features

• 384x288 IR Resolution
• 35mm/F1.0 Focal Length
• 7.50°×5.64° Field of View
• 1024×768 Full-Colour AMOLED display

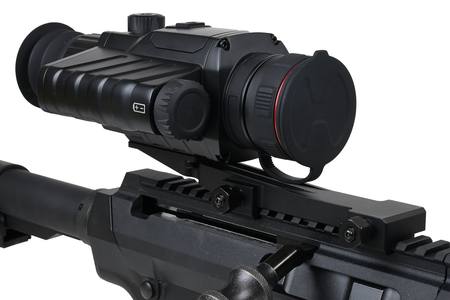

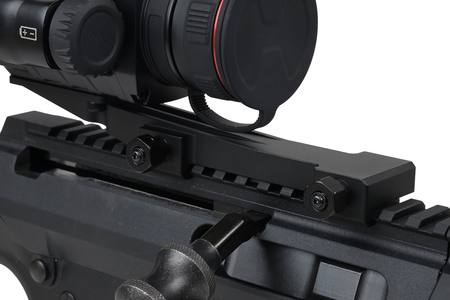

• Extended Picatinny Mount

Infrared detector/Sensor

• Detector type: Uncooled VOx Infrared
• Detector resolution and pitch: 348 × 288, 12 µm
• Spectral range: 8 to 14 µm
• NETD: =30 mk
• Frame rate: 50 Hz

Lens

• Focal length: 35 mm; F1.0
• Focus: Manual
• Field of View: 7.50° × 5.64°
• Optical zoom: 3.3x
• Digital zoom: 1x~4x

Display

• Display type: 0.39" OLED HD
• Resolution: 1024 x 768
• Eyepiece: Exit pupil distance=48mm; Diopter: +/- 4 to; Zoom: 14x
• Video output: Analog video

Power

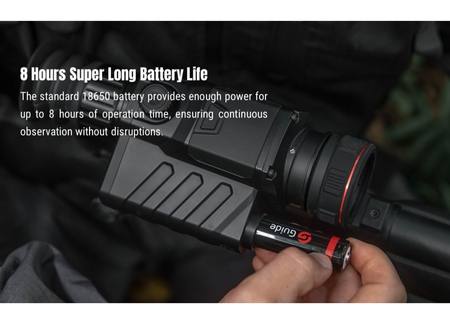

• Battery type: Single Replaceable 18650 battery
• Battery life: = 8 hours

Interface

• USB: Type C
• Mechanical interface: Picatinny

Range Performance

• Detection range: 1400 m

Functions

• Scene modes: Enhanced, Highlight and Natural

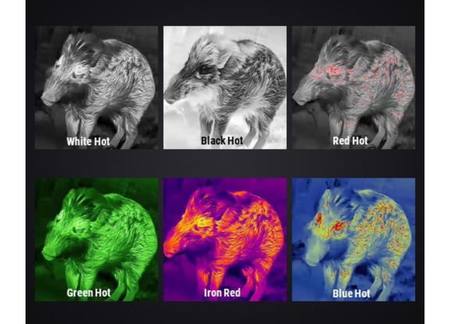

• Colour palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot
• PIP: Available
• Hot spot tracking: Available
• Rough ranging: Available with APP
• WIFI: 2.4 G
• Supported Application: TargetIR
• Firmware OTA: Upgrade device firmware via app connection

Environmental

• Storage temperature range: -45°C to 70°C
• Operating temperature: -30°C to 50°C
• Humidity: 10 % to 95 % non-condensing
• Shock: 800 G at 1 ms half-sine pulse
• Drop: 1 m
• Encapsulation: IP67
• Certification: IP67, FCC, CE, RoHS, EAC, WEEE, UKCA, un38.3

Physical:

• Weight: = 540 g
• Dimensions: 208 × 88 × 66 mm

Included in box...

• Guide TR430 Thermal Rifle Scope
• Extended Picatinny Base
• Type C cable
• 5V 2A adapter
• 18650 battery
• Battery charger
• Lens cap
• Eye mask
• Quick start guide
• Warranty card
