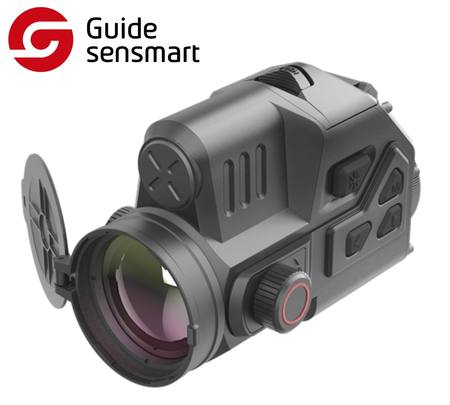

Guide TB650P | Thermal Imagining Scope Clip-On Attachment

The TB Pro Series perfectly balances precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, of a wider viewing angle, and richer colour. It is the ideal partner for hunting

This Thermal imaging unit runs with 18650 Button top type batteries (174169) or (454065)

Features:

• 12um infrared detector: TB Pro Series adapts the high-sensitive 12um infrared detector with NETD down to 20mK. The advanced detector can distinguish the slightest differences and changes in temperature
• 50mm focal length: TB Pro Series utilizes a longer focal length of 50mm to provide a longer observation distance and more image details than the common lens of 25/35mm
• 2600m detection range: A maximum detection range of 2600m, can detect targets in a long distance, which will help you see farther and observe more outdoors.
• High protective iP68: The high protective features of lP68 are dustproof and waterproof, 1000G/ms shock resistance, and support your outdoor observation, hunting, or rescue tasks even in rain, fog, or mist weather.

FuII-HD AMOLED display: The 0.39"1920x1080 high-definition AMOLED screen, allows for a visual experience with vibrant colours and excellent image quality, significantly enhancing the comfort of observation.

Specifications

Sensor

• Type Uncooled VOx Infrared Detector, 8 to 14 µm
• Resolution 640×512@12µm
• NETD 20mK
• Frame rate 50Hz

Lens

• Objective lens 50mm, F1.0
• Field of view 8.8°×6.6°
• FOV m @100m 15×12
• Magnification 1x
• Detection range 2600m/ 2800yd

Display

• Display Type 0.39'' AMOLED 1920x1080
• Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece Exit pupil distance 20mm; Zoom: 6.8x

Hardware

• WIFI 2.4G, 5G
• Interface USB Type-C (Power supply/USB2.0)
• Other: Microphone, Bluetooth

System & Power

• Recording function Photo/Video (Audio recording included)
• Memory capacity 64GB
• Battery type: 2 18650 batteries
• Operating time: 9 hours

Environmental & Physical

• Operating temp. -20 °C to 50 °C/ -4°F to +122°F
• Shock 1000 G at 1 ms half sine pulse (as per IEC60068-2-27)
• Encapsulation IP68
• Weight(g/oz) 582/ 20.53
• Size(mm/in) 161×89×97mm / 6.34×3.50×3.82"

Includes in Box...

• A device,
• Battery charger,
• 18650 battery×2,
• 5V2A adapter (US, Britain, Australia and Europe),
• USB Type-C cable,
• Quick use guide,
• Warranty card
