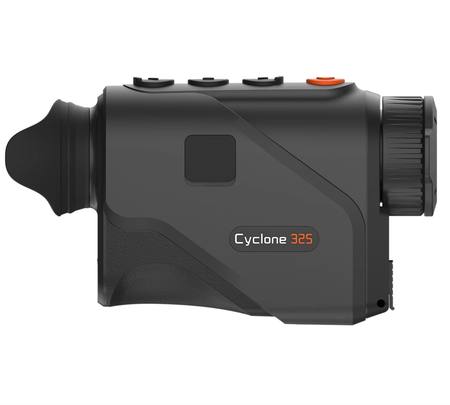

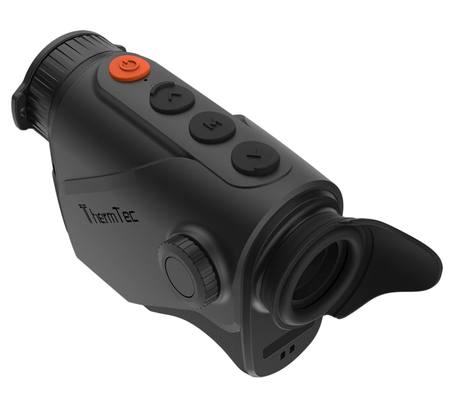

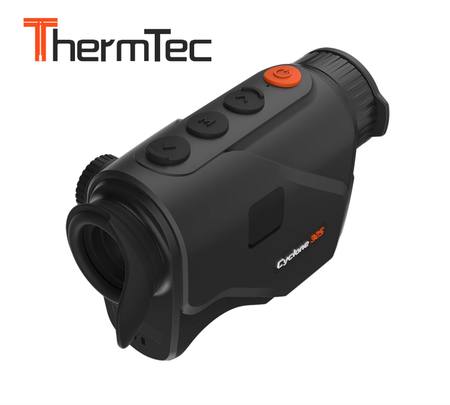

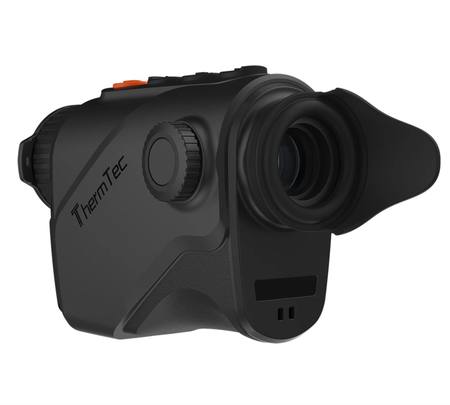

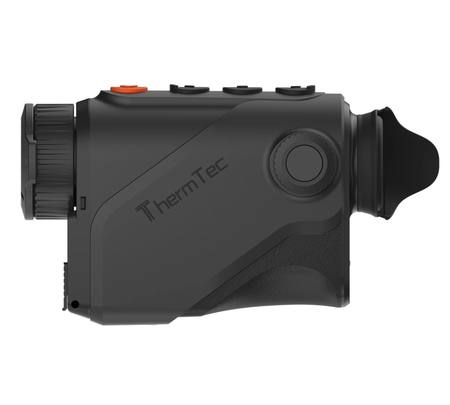

ThermTec Cyclone 325 25mm 50hz Handheld Thermal Monocular

ThermTec Cyclone 325 is a compact and lightweight handheld thermal imaging monocular for short and medium-range observations. Features a NETD <20mK detector that delivers excellent image quality. AI self-learning algorithms that provide increasingly stable target image quality. With advanced features such as multi-target ranging, 20-hour battery life, 3-second fast startup, etc., it is an excellent entry-level choice to explore the world of thermal imaging.

This Thermal imaging unit runs with 18650 Flat top type batteries (174106)

Quality at a Value

Cyclone features a high-sensitivity NETD <20mK detector, providing sharp clarity in even challenging environments. Upholding ThermTec's commitment to quality, Cyclone now offers a more portable size and a more attractive price. Experience excellence that fits your needs.

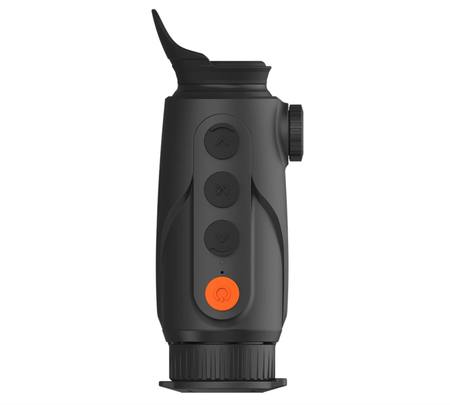

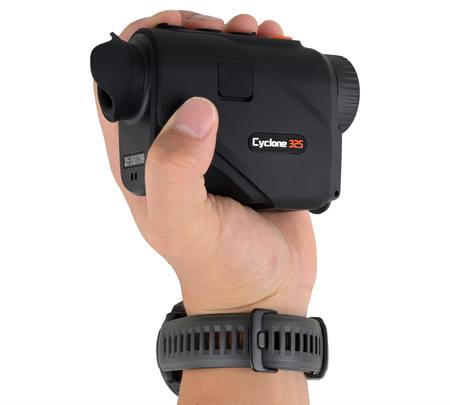

Pocket-Sized Precision

With its 255g compact size and ergonomically curved design, the device fits perfectly in your hand, enabling full control with one hand and effortless access to all buttons, regardless of whether you are left-handed or right-handed. The carefully arranged button layout allows for immediate usability once you take hold of it.

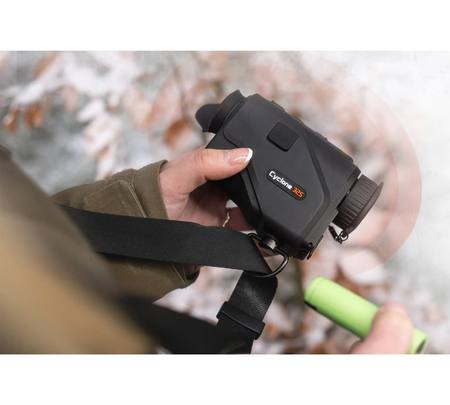

20 Hours Exploration

ThermTec's energy-efficient technology, combined with replaceable rechargeable batteries, ensures 10 hours of continuous operation. With two batteries, enjoy 20 hours of uninterrupted use from day to night. Plus, it supports use while charging—20 hours and beyond.

AI Calibration

Cyclone utilizes progressive AI algorithms, making each use a process of machine learning. By collecting data from various environments, it ensures consistent and clear image quality under the same conditions.

3 Seconds to Boot

Simply press the power button while raising your hand to prepare for observation, and the device will quickly start up. Ensure you don't overlook anything you wish to explore.

Multi-Target Distance Detection

Determining the distance to your target is essential for success. When multiple targets come into view, the Cyclone employs AI technology to automatically measure the distance to each heat source, greatly enhancing observation efficiency.

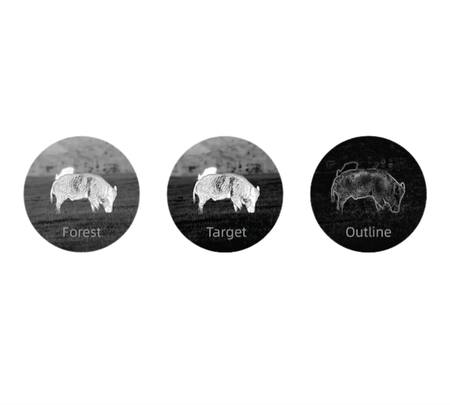

Tailored Viewing with 3 Modes

To accommodate the dynamic environmental conditions of targets, Cyclone features three modes—Forest, Target, and Outline—and six color palettes. You can customize the settings according to your current needs, enhancing observation efficiency while protecting your eyes during prolonged use.

Specifications for ThermTec Cyclone 325 25mm 50hz Handheld Thermal Monocular:

• Resolution: 384x288
• Pixel Pitch: 12µm
• NETD: 20mK@300k
• Spectral Range: 8-14µm
• Frame Rate: 50HZ
• Detection Range: 1300m
• Objective Lens: 25mm/F1.0
• Field of View: 10.5° x 7.9°
• Magnification: 18.4m×13.8m
• Digital Zoom: 2.4x
• Eye Relief: 20mm
• Exit Pupil: 6mm
• Diopter: ±5D
• Type: AMOLED
• Display Resolution : 1024x768
• Display Size: 0.39 inch
• Color Palette: 6
• Image Mode: Forest/Target/Outline
• Photo/Video Playback
• Language: Yes
• Inbuilt Memory: 32GB
• Audio: Yes
• Calibration: Auto/Manual
• PIP: Yes
• AI Distance Measurement: Yes
• Heat Track: Yes
• OSD Recording: Yes
• Internal Battery: Replaceable and Rechargeable Li-ion Battery (18650x1)
• Battery Life: 10h
• Type-C: Supports battery charging, data transfer
• Hotspot: Yes, App remote control
• Working Temperature: -20?~+50?
• Protection Level: IP67
• Weight (g): 261(w/o battery)
• Dimension (mm): 135*76*54

Warranty period on new thermal optics:

• Pulsar: 3 Year manufacturers warranty
• Guide: 1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty
• ThermTec: 3 Years manufacturers warranty

Please note: Manufacturers warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period that what is specified for the units above. The warranty does not cover mis-use or accidental damage caused by the operator.
