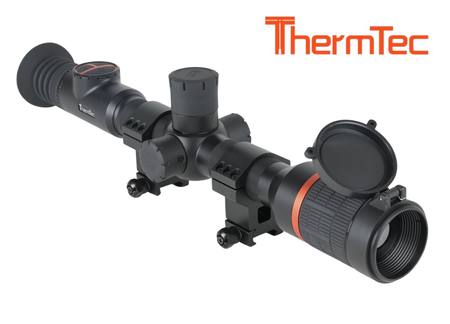

Thermtec Ares 335 Thermal Scope 35mm

The ThermTec Ares 335 thermal imaging scope offers solid performance and extensive features. The 2-way WiFi enables streaming to the Internet, the sensor has a resolution of 384 x 288 pixels, a person can be detected at a distance of 1.8 km, the display is one of the latest technology with AMOLED HD LEDs, it also offers 7 crosshairs, Backlight, 6 colour modes, Audio Recording and Picture in picture function.

The ThermTec Ares 335 has a stunning vanadium oxide thermal imaging chip that is based on 12 microns at a resolution of 384 x 288 pixels.

The Display can display images and videos in high definition. The panel is modern AMOLED Equipped with LEDs, these are self-illuminating, which means that they have no post-fogging effect in non-exposed areas. They work extremely efficiently and contribute to a longer battery life. It can also be one Reticle backlight switched on in the colours black, white, red or blue.

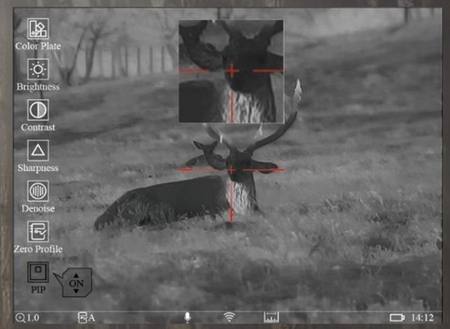

The picture-in-picture offers a wide field of view in the main screen while allowing the PIP to zoom in independently.

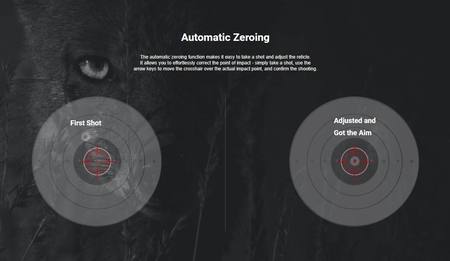

Zeroing in is comfortable, as the connected hunting app helps with this. It can be up to 5 different zeroing profiles

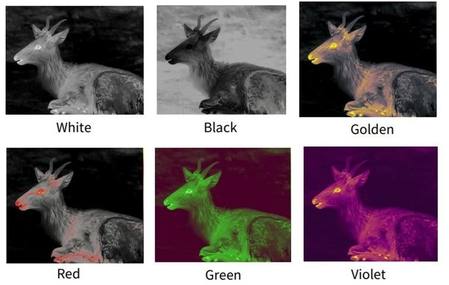

The Crosshair can be selected in 7 different variations depending on preference and with 6 different colour palettes and independent brightness, contrast, denoise and sharpness adjustments, the ThermTec Ares 335 can be fine-tuned for any environment.

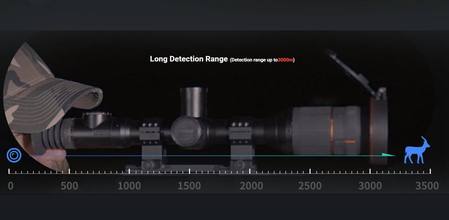

The objective lens is 35 millimetres in diameter, resulting in a field of view width of over 13 meters over a 100-meter distance. A person can be detected at a distance of 1.8 kilometres. These are ideal properties for close-range and medium-range night hunting.

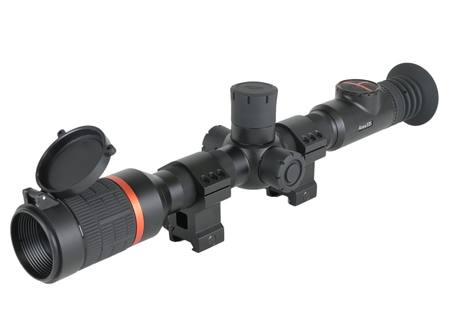

The classic design of the housing allows the Ares thermal imaging device to be mounted on a wide variety of platforms using 30mm rings which are included.

With the protection of IP67 Rain and dust cannot damage anything.

The ThermTec Smart Thermal app enables connection to a smartphone to share observations with up to 4 colleagues at the same time. What is new is that the WLAN module can send and receive in order to use the mobile Internet connection of the smartphone to be able to stream live on the net.

With an internal storage of 16 gigabytes, you can capture countless photos or hours of video.

Power is supplied by a Li-Io battery with a length of about 6h.

Add in one-shot and auto-shot zeroing systems, video AND audio recording, a standard 30mm mounting system, the use of either 18500 or 18650 batteries, reliable WiFi that allows you to control the device, and you have the most well-rounded scopes on the market.

Perfect Detail Recognition

The ThermTec Ares335 features a thermal imaging sensor with NETD <35mK and a 12µm detector to ensure perfect detail recognition.

Non-Uniformity Correction Technology

Designed with shutterless and silent NUC technology, the ThemTec Ares335 supports uninterrupted shooting, making it more reliable as the shutter is locked during shooting with minimized noise.

1024 AMOLED Display

AMOLED display ensures sharp, richly contrasted thermal imaging.

F/1.0 Germanium Optics

Fast-aperture germanium optics ensure optimal heat energy transmissivity.

Two-Way Wi-Fi Connection

Support both Wi-Fi and hotspot connections

High Degree of Protection

IP67 water-proof, dust-proof and fog-proof

Specifications

• Type   Uncooled
• Resolution, pixel   384x288/12µm
• Spectral   8-14µm
• NETD   =35mk
• Frame rate   50HZ
• Objective lens   35mm, F/1.0
• Field of view   7.5°x5.6°
• Magnification   3.2X
• Digital zoom   1 - 5X continuous zoom
• Eye relief   50mm
• Exit pupil   6mm
• Diopter   -5 ~ +5
• Click range, mm @100 m (H/V)   3,600mm/3,600mm
• Reticle   7
• Reticle colour Black and white
• Display type   AMOLED
• Resolution, pixel   1024x768
• Display size   0.39 inch
• Colour palette   6
• Max. recoil power on rifle  850 Gs
• Mounting brackets on  Standard 30mm rings
• Shooting record   Support
• Auto zeroing   Support
• Manual zeroing   Support
• Zeroing profiles   5
• Picture-in-picture   Support
• Wi-Fi   Support

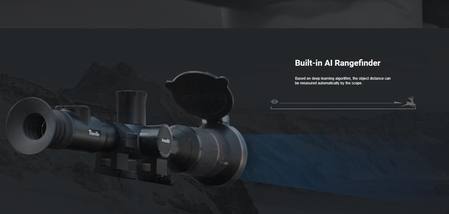

• AI ranging   Support
• Image calibration   By lens cover
• USB interface   Type-C
• Photo/video playback   Support
• Memory card:  16G

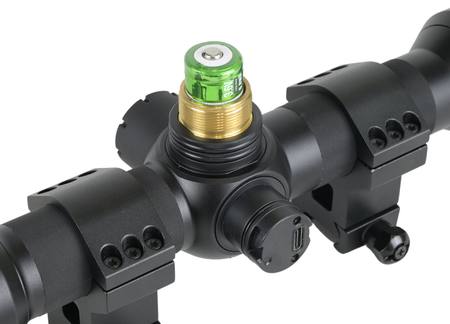

• Replaceable battery   18650 battery or 18500 battery
• Battery reverse connection   Support
• Battery life   6H
• Operating temperature   -20- +50?
• IP grade   IP67
