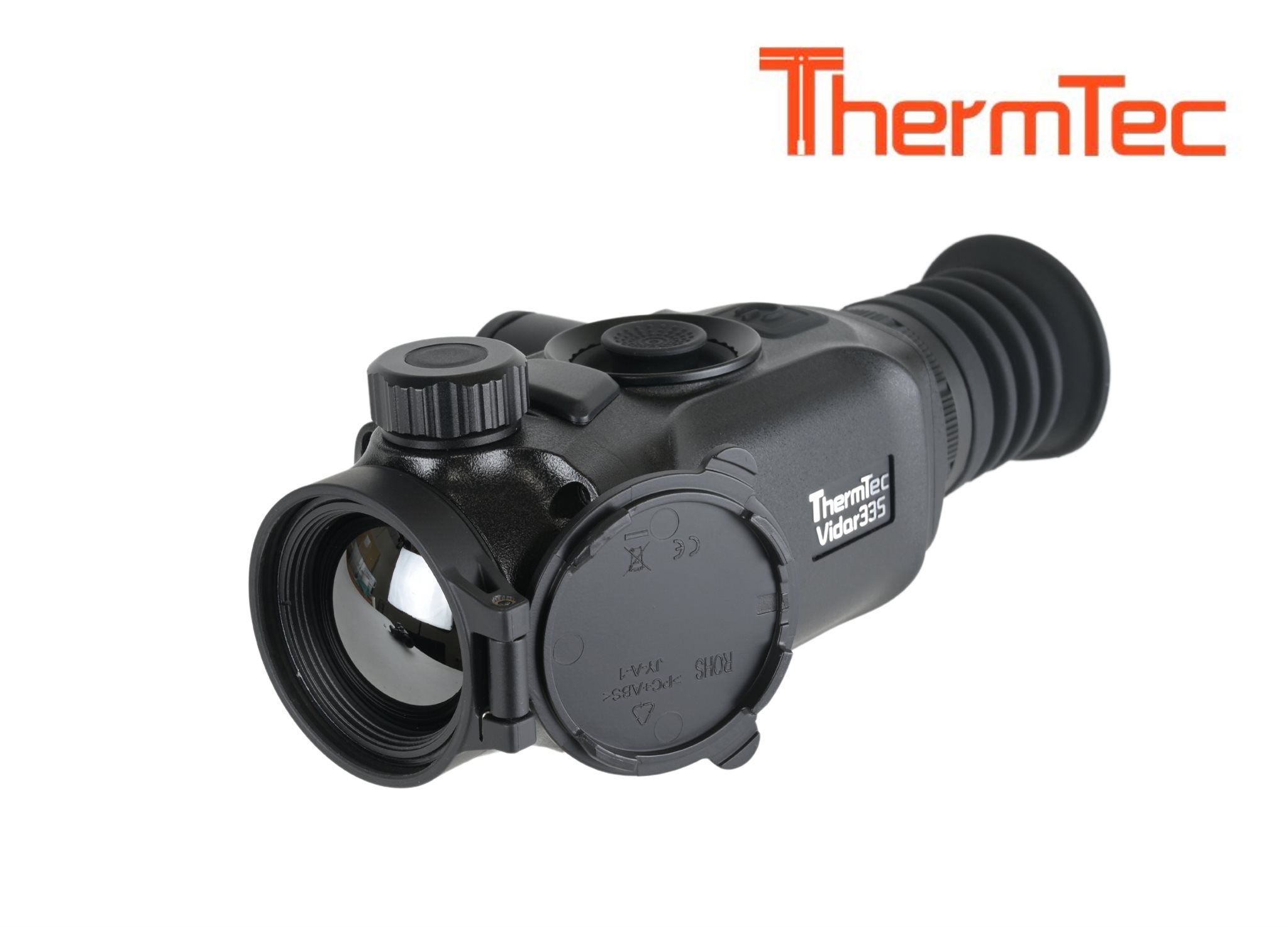

Thermtec Vidar 335 35mm 384x288 50hz Thermal Scope

Thermtec 335 Thermal Scope

Combining compact size & weight, the Thermtec Vidar thermal scope series represents the latest in thermal scope technology. Vidar thermal scopes are designed for professional users without compromising on quality.

All thermal scope models are equipped with Wi-Fi, as well as a photo and video recording capability that supports memory cards with a capacity of up to 64 GB. Thanks to advanced image calibration algorithms (NUC), these thermal imagers have been adapted to silent operation without the use of the shutter to ensure image is continuously displayed during shooting. They have are 6 color palettes, 7 different reticles, as well as many additional functions, including the Picture in Picture mode, quick reticle zeroing or the ability to being connected to smartphones

The thermal scope devices are powered by replaceable lithium-ion batteries (2x 18350 or 2x 18500), which enable up to 10 hours of use. The Vidar series products meet demanding water resistance standards and are IP67 certified.

This Thermal imaging unit runs with 18650 Flat top type batteries (174106)

Thermal Scope Features

Compact & Light

Lightweight and extremely compact, the Vidar is the perfect companion on any hunting or observational trip.

Non-Shutter Correction Technology

Invisible, background calibration means the screen will never freeze and there is no noisy shutter to alert your quarry.

Automatic Zeroing

The unique automatic zeroing function is the fastest, simplest zeroing system there is; just take a shot and let the Vidar set zero for you.

Real-time APP Notification

The “Smart Thermal” APP would instantly pop up a notification while

detecting the target to avoid any distraction.

High Thermal Sensitivity

The Vidar’s NETD =25mK sensor captures the smallest detail even the target and background are almost at the same temperature.

Automatic Object Detection

The Vidar can detect and identify the target while an object entering its field of view to avoid any miss.

High-Precision Zoom

Smooth & rapid 1.0-5.0X HD zooming ensures excellent sharpness and the highest resolution of details from minimum to maximum magnification.

Two Way Wi-Fi Connection

Support both Wi-Fi and hotspot connections; Real-time image transmission

64G storage

A 64GB of memory card enables a large storing of photos and videos.

Easy Battery Installation

The battery's anode and cathode can be installed interchangeably, helping users to complete the battery replacement more quickly at night.

IP67 Protection Rate

Provided with IP67-rated weatherproof performance, it is protected from heavy rainfall, snow, smoke, smog, or dust.

Thermal Scope Specifications

• Resolution, pixel 384*288/12
• Spectral 8-14µm
• NETD =25mk
• Frame rate 50HZ
• Objective lens 35mm, F/1.0
• Field of view 7.5°x5.6°
• Magnification 3.2X
• Digital zoom 1 - 5X continuous zoom
• Eye relief 45mm
• Exit pupil 6mm
• Diopter -5 ~ +5
• Click range, mm @100 m (H/V) 3,6m/3,6m
• Reticle 7
• Rectile color Black and white
• Display type AMOLED
• Resolution, pixel 1024x768
• Display size 0.39 inch
• Color palette 6
• Max. recoil power on rifle 600J

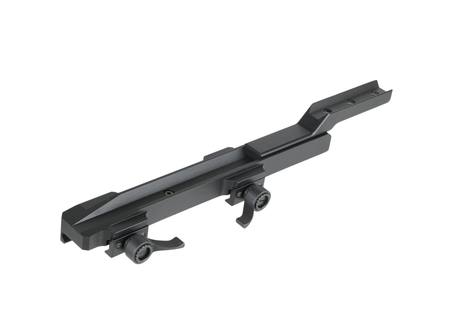

• Mounting brackets included QD Standard Picatinny Rail
• Shooting record Support
• RAV Yes
• Auto zeroing Yes
• Manual zeroing Yes
• Zeroing profiles 5
• Picture-in-picture Yes
• Image calibration Via lens cover
• Photo/video playback Yes
• Inbuilt memory 64G
• Magnetic interface Data transfer
• Wi-Fi Yes
• Replaceable battery 18650x2 (flat top)
• Battery reverse connection Yes
• Battery life 14h
• Operating temperature -20?—+50?
• IP rating IP67
• Weight, g 591
• Size, mm 160x60x70

Included in box:

• Vidar scope
• Allen keys and screw
• Lithium battery (4pcs)
• Magnetic charge cable
• Picatinny rail
• Manual
• Eyepiece hood

Warranty period on new thermal optics:

• Pulsar: 3 Year manufacturers warranty
• Guide: 1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty
• ThermTec: 3 Years manufacturers warranty

Please note: Manufacturers warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period that what is specified for the units above. The warranty does not cover mis-use or accidental damage caused by the operator.
