InfiRay Saim Series SCP19 Thermal Scope 19mm 25Hz

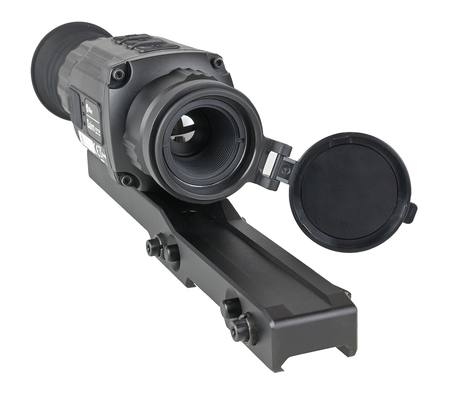

The InfiRay Saim series thermal imaging scope is designed with portability and easy operation. An ergonomic design and fantastic imaging quality make the Saim series an excellent companion for night observation, even in rainy or foggy conditions. Mounts directly onto picatinny rail.

High Image Quality

The built-in InfiRay detector matched with the powerful Matrix Ⅲ^TM algorithm is designed to increase imaging clarity and overall image detail. The Matrix Ⅲ^TM results in a sharper, more detailed field of view with enhanced object identification capabilities. The Saim series provides high image quality, automatic image contrast and strengthened mage hierarchy, giving you faster target acquisition.

User-Friendly Interface

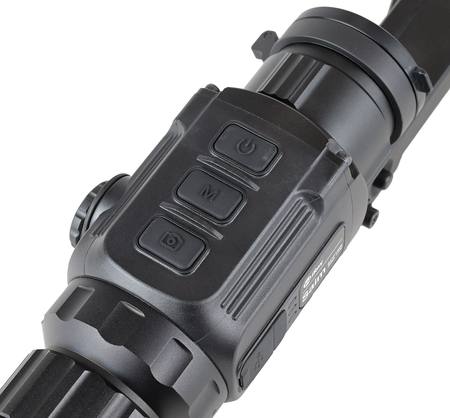

Simple and easy operation was the design intention of the Saim series. A full icon design, easy to understand and a translucent background design of menu can effectively avoid occlusion vision. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.

Image Sharpness Adjustment

Image sharpness can be adjusted manually to fit individual preference for high quality image, and there are four levels to chose from by short pressing the menu key.

Ultraclear Mode

Ultraclear mode is especially for bad weather such as heavy fog and raining, which makes the Saim thermal scope be more sensitive and get more details.

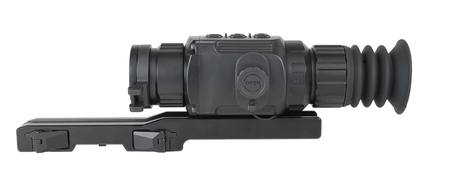

Compact Size and Lightweight

With a reasonable layout, compact structure and light weight, the Saim series is more comfortable and convenient for outdoor use.

High Shock Resistance

The Saim series features an exceptionally high shock resistance of up to 1000G.

External Power Supply

The working time can be significantly prolonged by connecting to high capacity external power supply units, i.e. portable power source via the Type-C cable presented in the package.

Picture-in-Picture Function

Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to magnify the target while keeping the rest of the field of view visible.

Specifications:

• Resolution: 256x192
• Pixel Size: 12 um
• NETD: ≤40mk
• Frame Rate: 25Hz
• Objective Lens: 19mm
• Field of View: 9.2°×6.9°
• Magnification: 2.3-4.6x
• Diopter Adjustment: -5D～+5D
• Display Resolution: 1280×960 LCOS
• WiFi & Recorder: ×
• Compass & Msensor: Msensor
• Amount of built-in memory: ×
• Battery Type: RCR123A ×2 or 16650 x2 with Extender 454053 fitted
• Max. Battery Life: 3hrs CR123 6hrs 16650 (suggest high MAH CR123 if only using those) can power off external battery back too
• Weight (without batteries): <380g
• Dimension: 186×61×61mm
• Detection Range (Target size:1.7m×0.5m, P(n)=99%): 986

Warranty period on new thermal optics:
• Pulsar: 3 Year manufacturers warranty
• Guide: 1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty
• InfiRay: 2 Year warranty: https://www.infiray.com/uploads/file/after-sales-service-policy.pdf

Please note: Manufacturers warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period that what is specified for the units above. The warranty does not cover mis-use or accidental damage caused by the operator.
