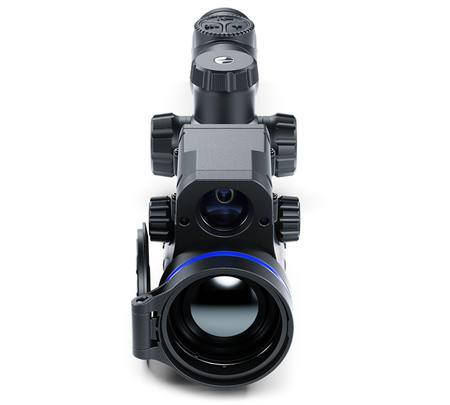

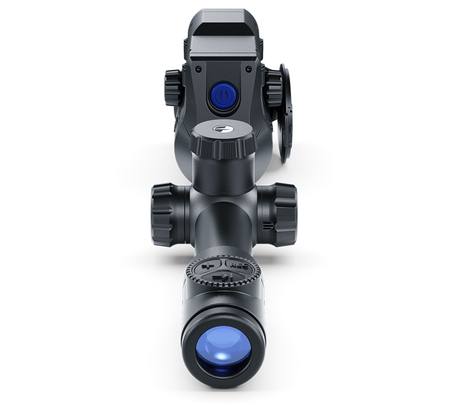

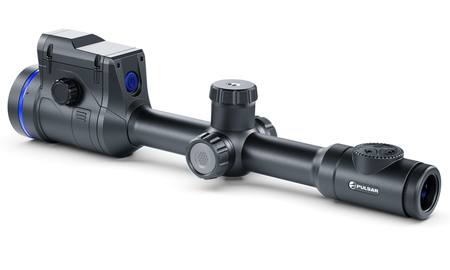

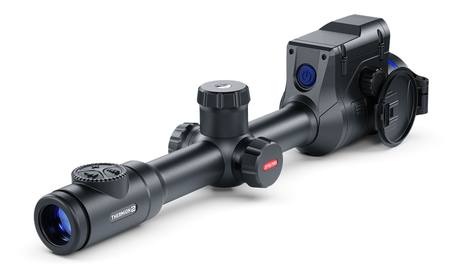

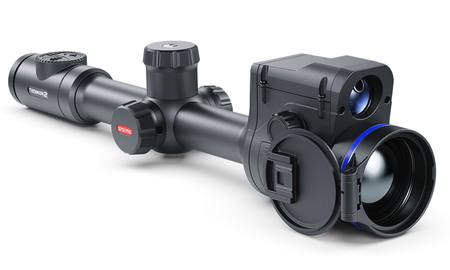

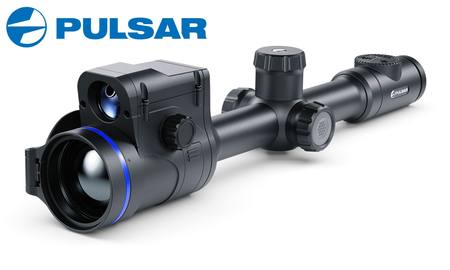

Pulsar Thermion 2 LRF XQ50 Pro Thermal Scope

Pulsar XQ50 Thermal Rifle Scope

The first thermal imaging rifle scope with classic thermal scope and built-in laser rangefinder

The laser rangefinder is seamlessly integrated into a slim design thermal riflescope. The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 metres – the Thermion 2 LRF Pulsar thermal scope provides the hunter with an accurate sense of distance at the hunting site helping to take a precise shot.

Thermal Scope Features

• Variable magnification

• High-precision aiming in the "Picture-in-picture" mode

• 5 individual shooting profiles / 50 zeroing distances

• A selection of 10 reticle shapes in 9 color modes

• Mounting on standard 30 mm rings

• Instant Start-up

• High caliber recoil resistance: 12 gauge, 9.3x64, .375H&H

• Completely waterproof IPX7

• Operating temperature range: -25 to +50 °C

• High contrast HD AMOLED display

• A selection of 8 color palettes

• Wide-angle eyepiece for comfortable observation

• Photo and video recording

• Stream Vision 2. WiFi integration with iOS and Android devices

Thermal Scope Specifications

• Sensor: 384x288 @ 17 µm (NETD <25 mK)

• Objective lens: F50 F/1.0

• Magnification: 3-12x

• Detection range: 1800 m

• Recognition range: about 450m

*based on a warm object (human, animal) 1.7m tall x 0.5 wide

• Field of view (HxV), degrees / m@100m: 7.5 / 13.1

• Eye relief: 50 mm

• Type: Uncooled

• Resolution: 384x288 Pixels

• Pixel pitch: 17 µm

• NETD: <25 mK

• Frame rate: 50 Hz

• Type: AMOLED

• Resolution: 1024?768 Pixels

• Click value H/V(mm at 100 m): 13 – 3? 6.5 – 6? 3.25 – 12

• Click range H/V(mm at 100 m): 2600 / 2600

• Number of preloaded reticles: 10+

• Video / photo resolution: 1024x768 Pixels

• Video / photo format: .mp4 / .jpg

• Built-in memory: 16 GB

• Wireless Protocol: Wi-Fi

• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)

• Frequency: 2.4 / 5 GHz

• Degree of protection, IP code (IEC60529): IPX7

• Operating temperature range: -25 – +50 °?

• Max. recoil power on firearm: 6000 Joules

• Compatible mounts: Standard 30 mm Rings

• Supported Application: Stream Vision 2

• Output voltage: 3.7 V

• Battery type: Li-ion APS2

• Capacity: 4900 mAh

• Operating time on battery pack(at t=22°C): 10 hours

• External power supply: 5 V /9 V (USB Type-C Power Delivery)

• Body material: Aluminum

• Dimensions: 420 x 78.5 x 94.5 mm

• Weight: 0.97 Kg

Laser Rangefinder

• Wavelength: 905 nm

• Max. measuring range: 800 m

• Measurement accuracy: ± 1

Warranty period on new thermal optics:

• Pulsar: 3 Year manufacturers warranty
• Guide: 3 Years manufacturer warranty
• ThermTec: 3 Years manufacturers warranty

*Guide: From date of purchase from authorised Guide reseller for the first owner with proof of purchase

Please note: Manufacturers warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period that what is specified for the units above. The warranty does not cover mis-use or accidental damage caused by the operator.
