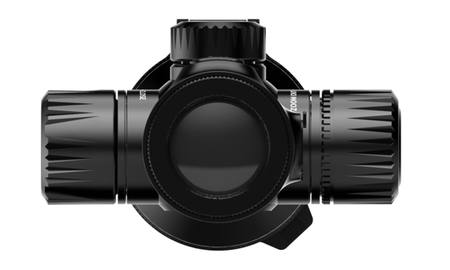

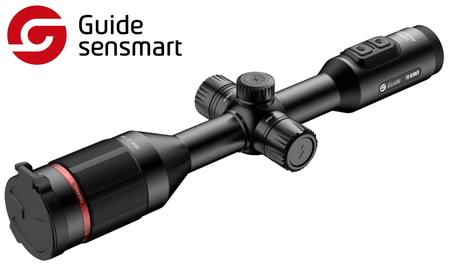

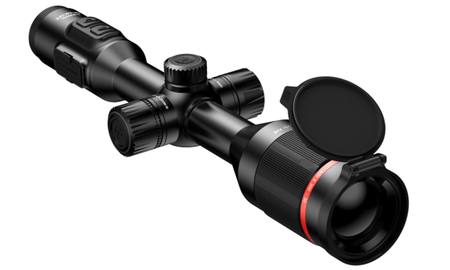

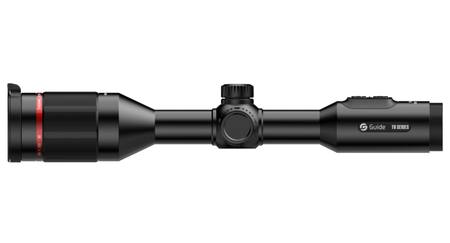

Guide TU650 2.8-22.4x50 OLED Thermal Scope

was SAVE
453120

In stock?

Christchurch
Auckland
Request
Wellington
Request
Hamilton
Request
Dunedin
Request
Napier
Request
Sockburn
Request
Motueka
Request
North Shore
Request
Richmond
Request
Invercargill
Request
Supplier
Request

Seen it cheaper elsewhere?

Request a Price Match - Click here.

Share this with your friends!



Guide TU Thermal Scope retains the appearance of a traditional daylight scope and perfectly integrates latest premium thermal imaging technology. The design of this scope accommodates long-term operating habits of hunters. TU 650 series adopts 640 x 480 high- sensitivity thermal detector with its 10 sets of zero calibration configuration make it convenient to switch between different instruments.

Features:

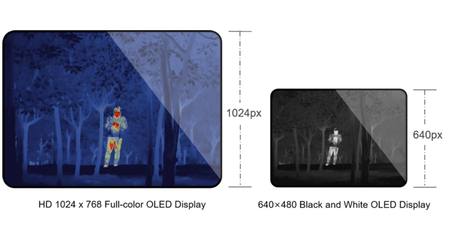

• Full-color OLED display

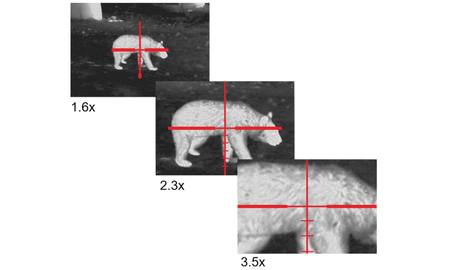

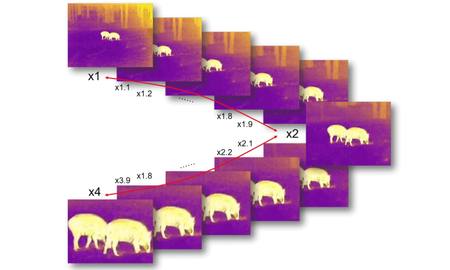

• Smooth Zoom For Flexible Searching
• Designed for Professional Hunters
• Multiple Color Palettes to Highlight the Target
• Multiple scene modes, Highlight Target Clearly
• Photo and Video Recording
• 10 hours Super Long Battery Life
• IP67 Protection Rating, Rugged and Durable

Infrared detector
• Detector type: VOx
• Detector resolution and pitch: 640 × 480, 12 μm
• Spectral range: 8 to 14 μm
• NETD: ≤30 mk
• Frame rate: 50 Hz

Lens
• Focal length: 50 mm; F1.0
• Focus: Manual
• Field of angle: 8.78° × 6.59°
• Optical zoom: 2.8x
• Digital zoom: 1 – 8x

Display
• Display type: 0.39’’ OLED
• Resolution: 1024 × 768
• Eyepiece: Exit pupil distance ≥ 48 mm, Exit pupil diameter ≥ 8 mm, Diopter ± 4
• Eyepiece zoom: 14x
• Video output: Digital video

Power
• Battery type: Single 18650 battery (built-in)
• Battery life: ≥ 5 hours

Interface
• USB: Type C, (supporting power delivery, charging, and reading data from memory card)
• Video interface: micro HDMI
• External expansion: External Display and Bluetooth remote control
• Mechanical interface: Picatinny

Functions

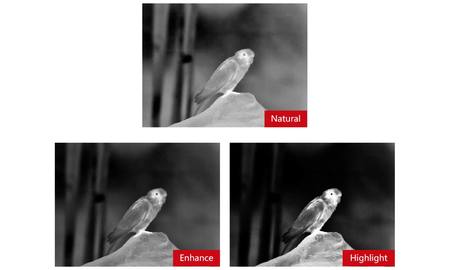

• Scene modes: Enhanced, Highlight and Natural
• Ultra power saving mode: Available
• Image capturing : Yes
• Video recording : Yes
• WIFI: Transmission of real-time video via WIFI for remote control in the 2.4G frequency band and within 15 meters
• Color palettes: White Hot, Black Hot, adjustable Red Hot , Green Hot, Iron Red, Blue Hot
• Compensation modes: Shutter and scene compensation
• Zero calibration : 50 m / 100 m / 200 m / 300 m / 500 m
• Line type: 10 types
• Line brightness :10 levels
• Line color: Black / white / yellow / green / red / blue
• Rough ranging: Available

System
• Language settings: Chinese / English / Russian / German / French
• Memory capacity: 16GB

Environmental
• Operating temperature range: -30°C to 50°C
• Storage temperature range: -45°C to 70°C
• Humidity: 10 % to 95 % non-condensing
• Shock: 500 G
• Vibration: 10 Hz - 150 Hz
• Certification: IP67, FCC, CE, RoHS, EAC, un38.3

Range Performance
  Size Recognition Range Detection Range
Boar  0.9 x 0.7 m 630 m 1250 m
Deer  1.5 x 0.5 m 830 m 1650 m
Human   1.8 x 0.5 m 1000 m 2000 m
Vehicle  2.3 x 2.3 m 2000 m 3300 m



Warranty period on new thermal optics:
Pulsar: 3 Year manufacturers warranty
Guide: 1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty
InfiRay: 2 Year warranty: https://www.infiray.com/uploads/file/after-sales-service-policy.pdf

Please note: Manufacturers warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period that what is specified for the units above. The warranty does not cover mis-use or accidental damage caused by the operator.
