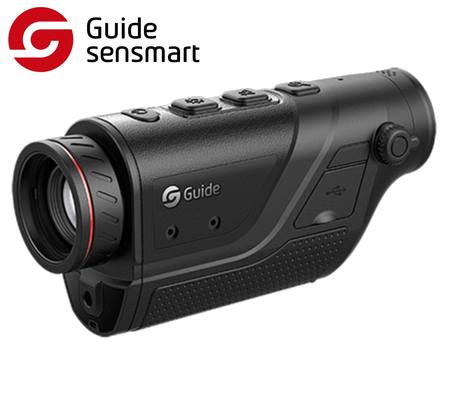

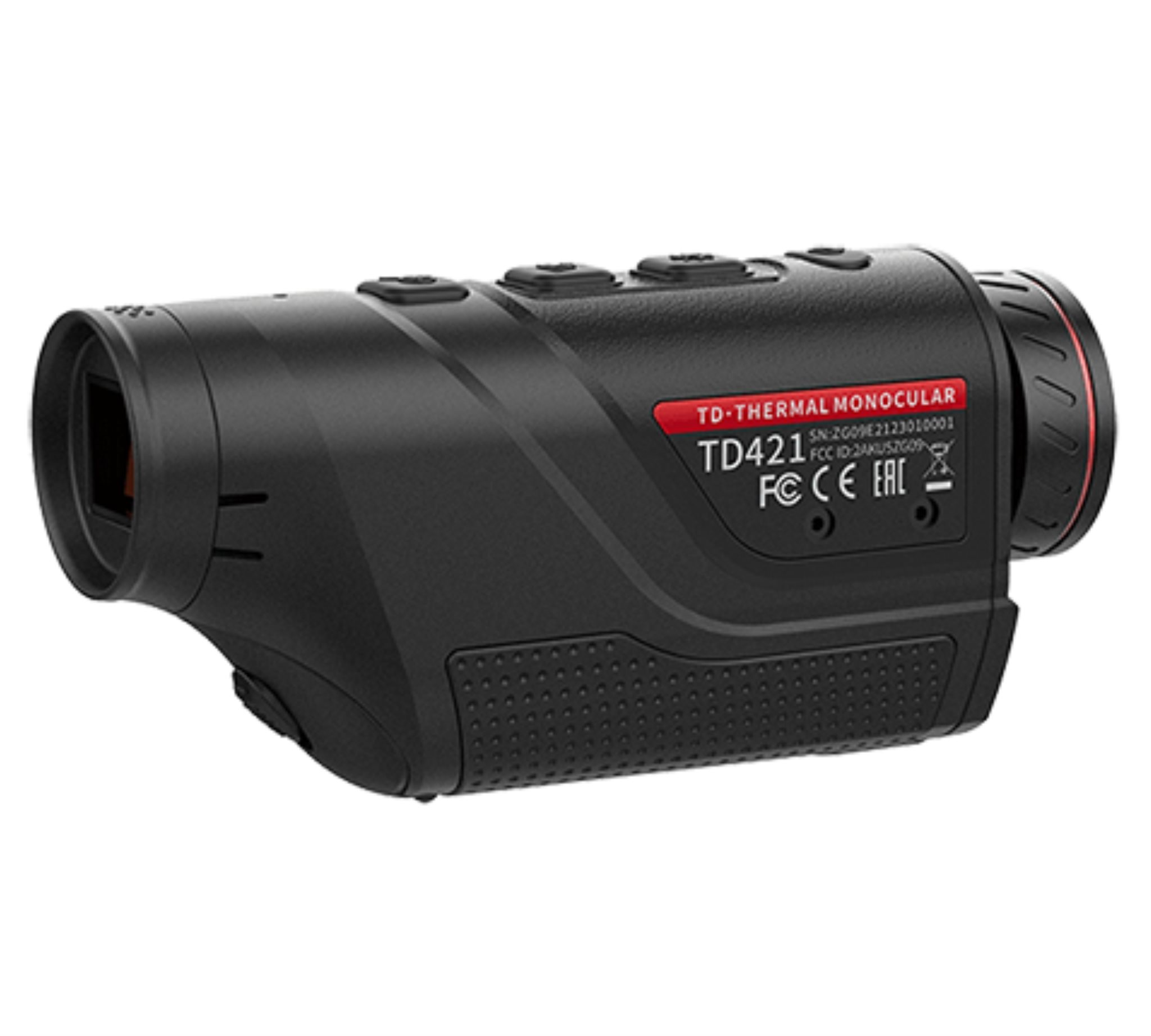

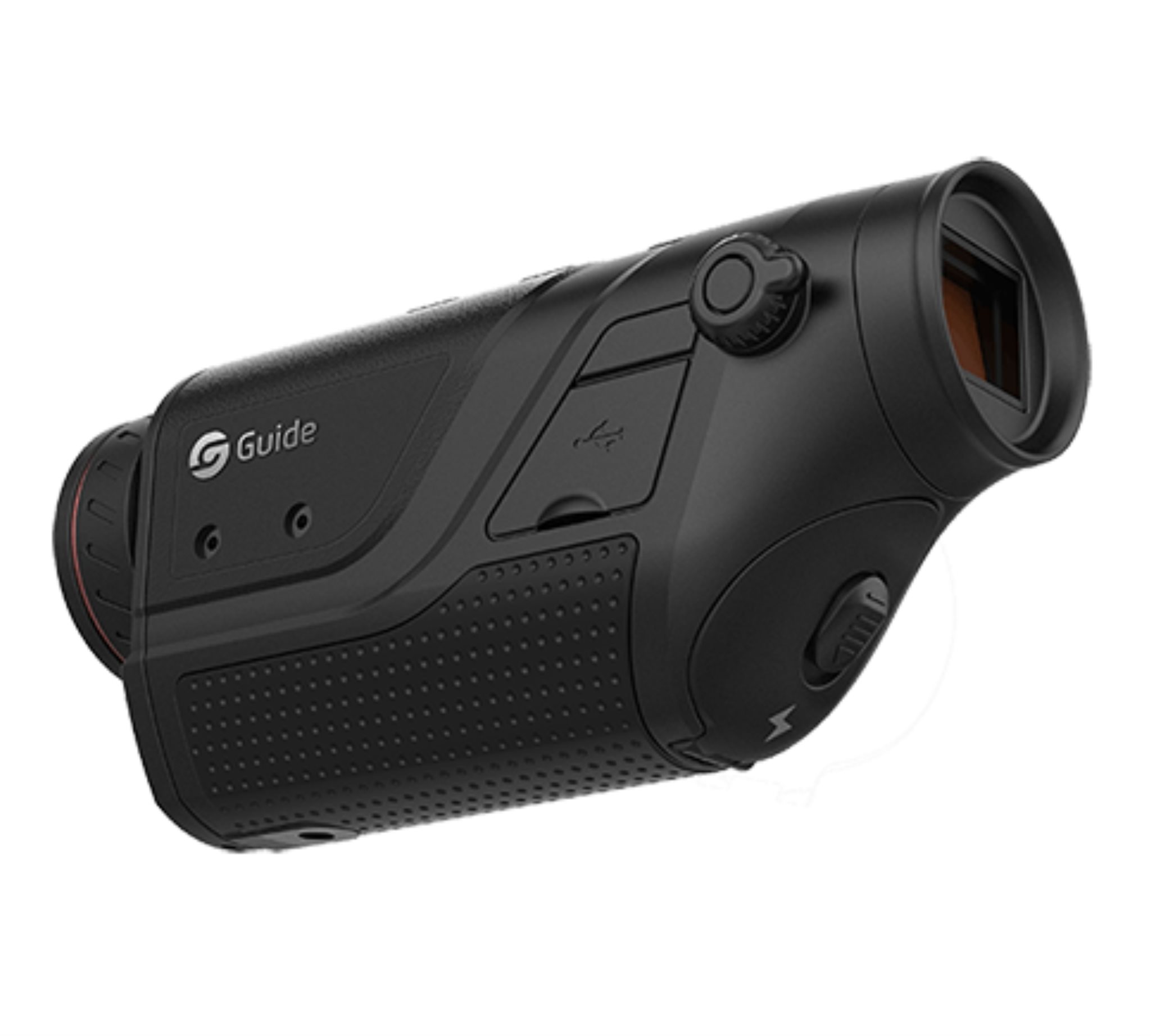

Guide TD421 Thermal Monocular Handheld

TD Gen2 thermal monocular Series follows the design of traditional optical equipment. It is a lightweight, portable, simple operation with a wide range of application scenarios for thermal handheld imaging monoculars. With a high-brightness AMOLED display, the TD Gen2 Series thermal monoculars provide clear imaging and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision.

Thermal Monocular Features

• 384x288 IR Resolution
• 25mm/F1.0 Focal Length
• Manual Focusing
• 10 Hours Strong Battery Life

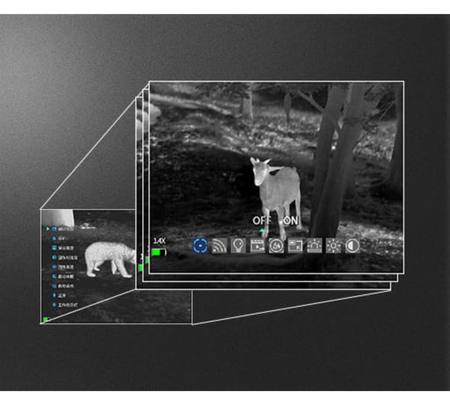

• New User Interface Design; Iconized operation without language restrictions
• Real-time Sharing with WIFI

Thermal Monocular Specifications

Infrared detector/Sensor

• Detector type: Uncooled VOx Infrared
• Detector resolution and pitch: 348 × 288, 12 µm
• Spectral range: 8 to 14 µm
• NETD: =35 mk
• Frame rate: 50 Hz

Lens

• Focal length: 35 mm; F1.0
• Focus: Manual
• Field of View: 10.4° × 7.9°
• Optical zoom: 1.9x
• Digital zoom: 1x, 2x & 4x

Display

• Display type: 0.23" AMOLED
• Resolution: 640 x 400
• Eyepiece: Exit pupil distance=12 mm; Diopter: -4 to +2; Zoom: 18x
• Video output: Analog video

Power

• Battery type: Single Replaceable 18650 battery
• Battery life: = 10 hours

Interface

• USB: Type C
• Mechanical interface: UNC ¼"-20 (Tripod mounting), Mechanical expansion interface

Range Performance

• Detection range: 1000 m

Functions

• Scene modes: Enhanced, Highlight and Natural

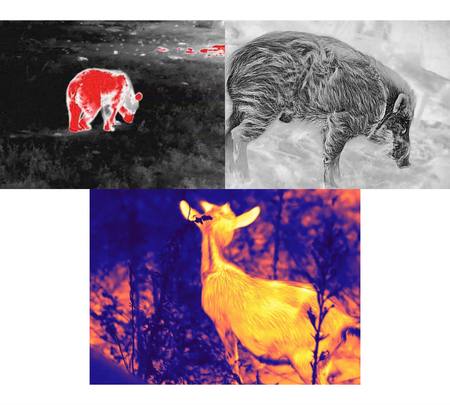

• Colour palettes: Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot
• PIP: Available
• Hot spot tracking: Available
• Rough ranging: Available with APP
• WIFI: 2.4 G
• Supported Application: TargetIR
• Firmware OTA: Upgrade device firmware via app connection

Environmental

• Storage temperature range: -30°C to 60°C
• Humidity: 10 % to 95 % non-condensing
• Shock: 30 G at 11 ms half-sine pulse
• Drop: 1 m
• Encapsulation: IP66
• Certification: IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2

Physical:

• Weight: = 325 g
• Dimensions: 150 × 45 × 74 mm

Included in box...

• Guide TD421
• Lens cover and lanyard
• Wrist strap
• Carry bag
• Eye mask
• Battery charger
• Single 18650 battery
• USB Type-C cable
• Quick use guide
• Warranty card
