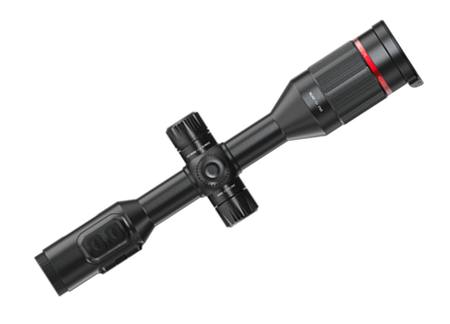

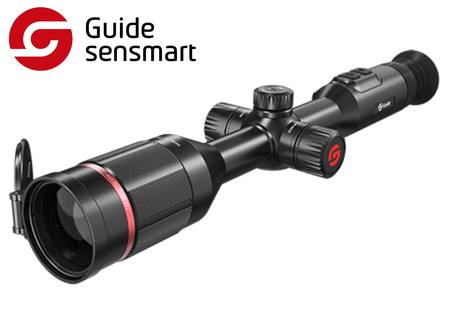

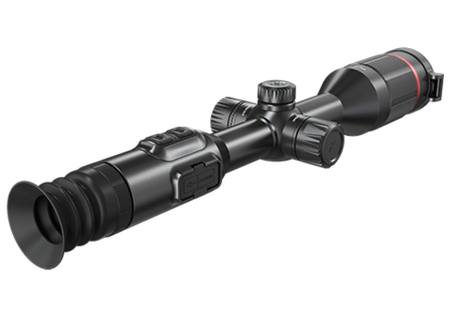

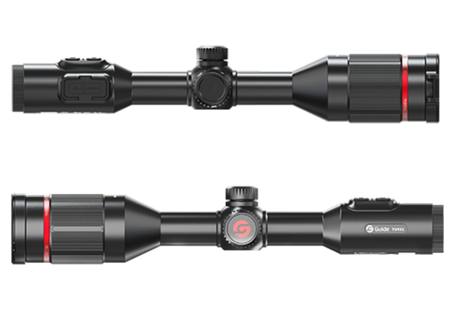

Guide TU431 Gen2 Thermal Scope

The TU Gen2 Series thermal scope is equipped with a high-sensitivity thermal sensor of 12µm and a 1440×1080 HD AMOLED display. Paired with the robust PureIR image algorithm, it provides users with a more vivid and detailed visual experience. The TU Gen2 Series thermal riflescope has undergone meticulous optimization in its detailed design, elevating user-friendly operation. Furthermore, the battery life has seen a substantial extension, resulting in a 20% increase in duration.

Thermal Scope Features

High Definition Thermal Sensor

High-quality thermal imaging with 400×300@12µm resolution with clear distinctions allows for improved recognition of animals, their body parts, and even minute elements such as branches, leaves, grass, and the landscape.

1440×1080 AMOLED Display

The heat signature captured by the thermal image can be shown on the display using the picture-in-picture (PIP) feature, significantly enhancing the comfort of observation.

PureIR Adaptive Dynamic Filtering Algorithm (PureIR)

The PureIR combining 3DNR and PureIR adaptive filtering algorithms delivers high-sensitivity thermal images, reducing image distortion and enriching detail even for distant targets.

Thermal Scope Specifications

Infrared detector

• Detector type: Uncooled VOx Infrared
• Detector resolution and pitch: 400 × 300, 12 µm
• Spectral range: 8 to 14 µm
• NETD: =30 mk
• Frame rate: 50 Hz

Lens

• Focal length: 35 mm; F1.0
• Focus: Manual
• Field of View: 7.8° × 5.9°
• Optical zoom: 2.65x
• Digital zoom: 1x ~ 4x

Display

• Display type: 0.39" AMOLED
• Resolution: 1440 x 1080
• Eyepiece: Exit pupil distance= 48mm; Diopter: +/- 4 to; Zoom: 14x
• Video output: Digital video

Power

• Battery type: Single Replaceable 18650 battery
• Battery life: = 12 hours

Interface

• USB: Type C
• Video Interface: Micro HDMI
• Tube Diameter: 30mm
• Memory Capacity: 128 gb
• Language Settings: English / Russian / German / French / Italian / Spanish / Japanese / Korean / Polish

Range Performance

• Detection range: 1000 m

Functions

• Scene modes: Enhanced, Highlight and Natural
• Color palettes: Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot
• PIP: Available
• Hot spot tracking: Available
• WIFI: 2.4 G
• Supported Application: TargetIR
• Firmware OTA: Upgrade device firmware via app connection

Environmental

• Operating temperature range: -30°C to 50°C
• Storage temperature range: -40°C to 70°C
• Humidity: 10 % to 95 % non-condensing
• Shock: 800 G at 1 ms half-sine pulse
• Encapsulation: IP67
• Certification: FCC, CE, RoHS, EAC, un38.3

Physical:

• Weight: = 990 g
• Dimensions: 377 × 107 × 99 mm

Included in box...

• Device
• Lens cap
• Eye masks
• 5V2A adapter (US, Britain, Australia and Europe)
• Desktop charger
• Customized battery ×2
• Extended clip ×2
• USB Type-C cable
• Micro HDMI cable
• Quick start guide

Learn how to set up the ballistics feature on your Guide Thermal Scope with our step-by-step guide. Click here to get started.
