Thermtec Ares 660L Dual 20-60mm Thermal Scope

was SAVE

In stock?

North Shore

Seen it cheaper elsewhere?

Request a Price Match - Click here.

Share this with your friends!

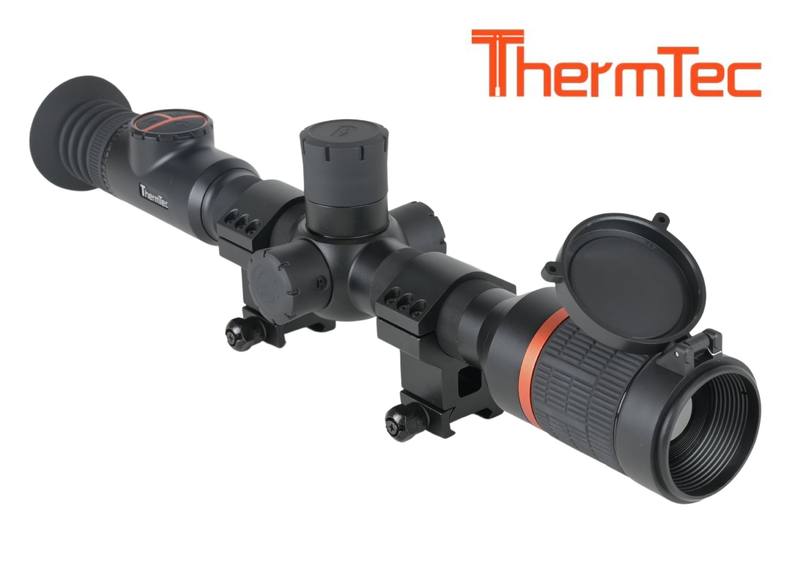

Thermtec Ares 660L Thermal Scope

The Ares Series 660 thermal scope is the combination of cutting edge design and the latest technology in thermal image processing. Ares thermal riflescopes are designed with 1024x768 AMOLED screen. It provides unique HD image quality. Thermal image sensor with =35mk NETD, 50Hz frame rate and 12 µm detector ensures perfect detail recognition even under the harshest weather conditions when thermal contrast is low. With powerful objective lens and advanced thermal image processing hardware, a standard, 1.8 m high item can be detected up to 1500 m away in complete darkness.

Thermal Scope Key Features

  • Resolution, pixel: 640x512/12µm
  • Lens: 20/60mm, F1.0
  • =35mk NETD
  • Dual-field of view

Wide options of color palettes

6 thermal image pallets with comfortable visual experience, to meet with a variety of environments and weather conditions. A selection of 6 color palettes lets the user observe their field of view more effectively, allowing them to optimize the device for specific tasks and respond to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase the chances of recognition and identification.



Built-in AI rangefinder

Based on deep learning algorithm, multiple objects distances could be automatically measured and shown while observing.


Automatic Zeroing

The automatic zeroing function makes it easy to take a shot and adjust the reticle. It allows you to effortlessly correct the point of impact - simply take a shot, use the arrow keys to move the crosshair over the actual impact point, and confirm the shooting.



Automatic recognition of objects

Hunting with a tripod you will never miss an object coming into your shooting area as you rest next to it.



Admission and connections

Take photos/videos as you record, record every moment of your hunting and outdoor experience. The built-in Wi-Fi module supports both Wi-Fi and Hotspot connections, enabling real-time image transmission to mobile devices.



Picture-in-picture function

In picture-in-picture mode, it displays a magnified image at the top-center of the overall field of view with aligned crosshairs and ½ mil FFP reticle when zooming on an object of interest.

Thermal Scope Specifications

  • Type   Uncooled
  • Resolution, pixel   640x512/12µm
  • Spectral   8-14µm
  • NETD   =35mk
  • Frame rate   50HZ
  • Objective lens   20mm/60mm, F/1.0
  • Field of view   21.7°x17.4°/ 7.3°x5.9°
  • Magnification   1.1X/3.2X
  • Digital zoom   1 - 5X continuous zoom
  • Eye relief   50mm
  • Exit pupil   6mm
  • Diopter   -5 ~ +5
  • Click range, m @100 m (H/V)   3,600mm/3,600mm
  • Reticle   7
  • Rectile color   Black and white
  • Display type   AMOLED
  • Resolution, pixel   1024x768
  • Display size   0.39 inch
  • Color palette   6
  • Max. recoil power on rifle  850 Gs
  • Mounting brackets  Standard 30mm rings
  • Shooting record   Support
  • Auto zeroing   Support
  • Manual zeroing   Support
  • Zeroing profiles   5
  • Picture-in-picture   Support
  • Wi-Fi   Support
  • AI ranging   Support
  • Image calibration   By lens cover
  • USB interface   Type-C
  • Photo/video playback   Support
  • Memory card   16G
  • Replaceable battery   18650 battery or 18500 battery
  • Battery reverse connection   Support
  • Battery life   6H
  • Operating temperature   -20- +50?
  • IP grade   IP67
  • Other accessories   2x standard 30mm rings, eyeshade and etc.
