Sightmark Ultra Shot A-Spec Reflex Sight

Ultra Shot A-Spec Reflex Sight - Sightmark

Designed to deliver advanced optic performance, the Sightmark Ultra Shot A-Spec Reflex Sight promises repeatable accuracy and ultra-fast target acquisition for recreational, professional and competition shooting environments.

The Ultra Shot A-Spec’s premium wide-angle lens system with scratch-resistant and anti-reflective red coating, 4 illuminated red reticle options with 10 brightness settings, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even when perfect sight alignment isn’t an option. Built tough, the Ultra Shot A-Spec Reflex Sight is shockproof, IP55 weather-resistant, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminium body and protective shield.

1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly. The Interlock internal locking adjustment system and a single CR123A battery will keep you there with a battery life of 200 – 2,000 hours. The Ultra Shot A-Spec Reflex Sight also features a low battery indicator, digital switch controls, 1-hour auto shut-off, quick-detach picatinny mount and Sightmark’s lifetime warranty.

The Ultra Shot A-Spec Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and neoprene cover.

Features

• XT-3 Magnifier compatible
• Advanced AR coated
• Scratch-resistant lens system
• Night vision brightness modes
• 4 red reticle options with 10 brightness settings
• Quick detach mount for easy on/off application
• Auto-off capabilities
• Low battery indicator
• Recoil rated up to .50 BMG
• Up to 2000 hours of battery life
• Parallax-corrected optical system

Specifications

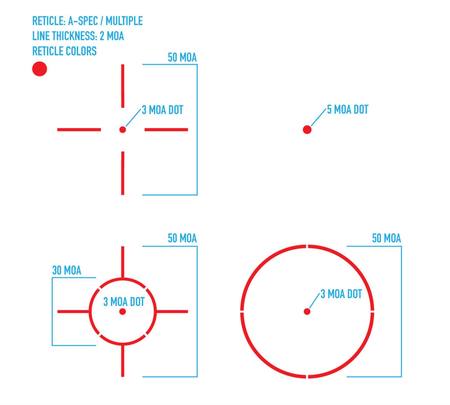

• Reticle Type:   4 Pattern

  5 MOA dot,

  3 MOA dot with 50 MOA circle,

  3 MOA dot with 50 MOA crosshair,

  3 MOA dot with 30 MOA circle/crosshair (sub tensions total 50 MOA)

• Reticle Color:   Red

• Reticle Brightness Setting:   Off, 1-10, NV

• Magnification:   1x

• Objective overall dimension:   33x24 mm

• Eye relief:   Unlimited

• Elevation Range of Adjustment:   120 MOA

• Windage Range of Adjustment:   120 MOA

• Adjustment Value:   1 MOA

• Parallax Setting: 10 / 9.1 yd/m

• Finish/Color:   Matte black

• Body Material:   Aluminum 6061-T6

• Maximum Recoil:   .50 BMG Max calibre

• IP Rating (waterproof):   IP55 - water resistant

• Shock-proof ness: Yes, 8ft / 2.4m

• Lens Coating:   AR red

• Mount Type:   Picatinny

• Battery Type:   CR123A

• Battery Life:   200-2,000 Hours

• Battery Voltage:   3 V

• Operating temperature:   -22 to 160 F / -30 to 71 C

• Length:   4.33" / 110 in/mm

• Width:   1.96" / 50 in/mm

• Height:   2.28" / 58 in/mm

• Weight:   306 g / 10.8 oz.

• MFG Code: SM26032

Product Manual : Ultra Shot A-Spec Reflex Sight
