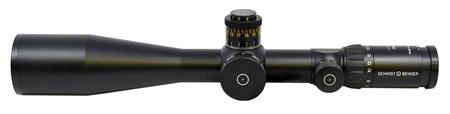

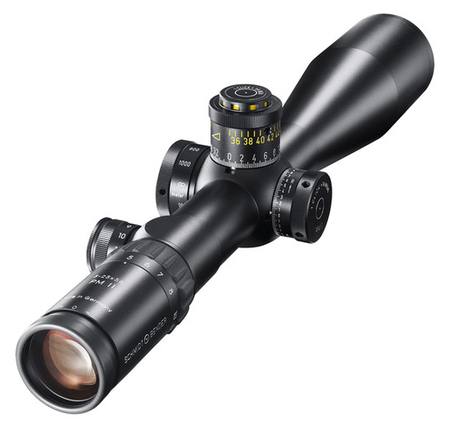

Schmidt & Bender PM II/LP 5-25x56 Illuminated Reticle Double Turn 0.1 MRAD Turrets

Buy Schmidt & Bender PM II/LP 5-25x56 Illuminated Reticle Double Turn 0.1 MRAD Turrets in NZ.

In stock?

North Shore

Seen it cheaper elsewhere?

Request a Price Match - Click here.

Share this with your friends!


This is one of the best scopes in the world. Schmidt and Bender's are used worldwide in Police and Military scenarios and are absolutely amazing. Check out the reticle here.

Schmidt and Benders most popular scope, allowing precise shot placement to 2000 meters yet still presenting an exceptionally wide field of view at low power. The 34mm main tube is an outstanding performer in poor light, resulting in one of the most sophisticated, complete scopes ever built. This scope is chosen by many military and police forces around the globe to accommodate precision sniper rifles.

The first focal plane reticle does not move point of aim and the Milradian Dots stay true to measurement the whole way through the power range of the riflescope.

Unlike most long-range variables that offer only a 4x magnification multiple, the 5-25 x 56 provides a full 5x and a wider field of view. Parallax adjustment in a separate turret, completely adjustable from 10 meters to infinity.

The illuminated reticle has 11 graduated settings offering precise control relative to ambient light. The scope includes Schmidt & Bender's unique color-coded "Double Turn" elevation knob that gives the shooter instant reference to where the elevation is set. The entire 100-minute adjustment range can be covered in just two turns of the knob. The user will never become "lost" within the adjustment range.


Schmidt and Bender P4 Ret


Dimensions: 3442.5410mm
Construction: Aluminum tube, 34mm without rail
Hard anodized black surface
Reticle in first focal plane
Illuminated reticle:
P4L fine, 1. BE
Optical data
Magnification: 5 - 25x
Field of view @ 100m: 5.3m - 1.5m
Exit pupil: 10.95mm - 2.28mm
Eye relief: min 85mm
Twilight factor: 14.1 - 37.4
Light transmission: min 90% day & night
Diopter setting: +2 to -3
Elevation increments: 0.1Mrad
Elevation range: 0 - 26 Mrad
Windage increments: 0.1Mrad per click
Windage range: ±6 Mrad
Parallax adjustable from 50m to infinity
Reticle illumination:Settings 1-11: For use in low light conditions
Battery: CR2032, 100+ hour life. Illumination is switched off automatically after six hours to conserve battery
Weight: 1080g
Waterproof to 25m, 300 mbar inner pressure
