Ranger Magnetic Thermal Roof Mount | 360° Pan with Remote Control

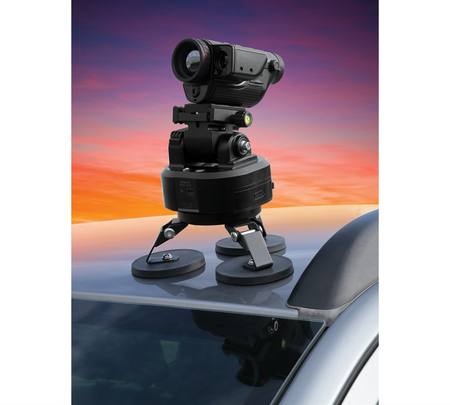

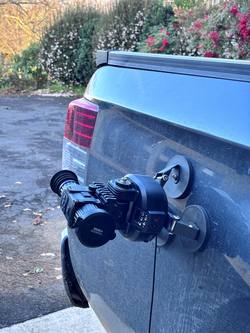

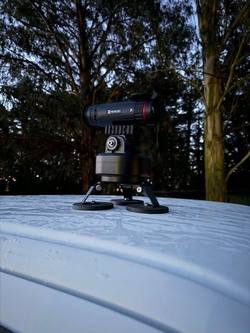

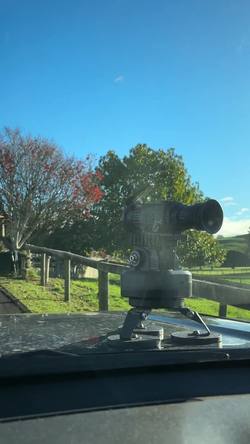

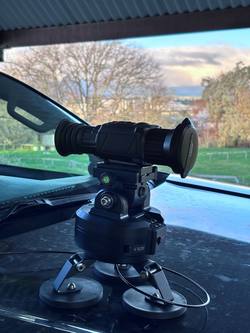

Mount your thermal to any vehicle with this remote controlled, 2-axis tripod.

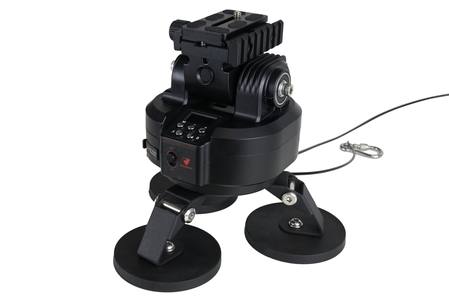

Powerful Magnetic feet with non-slip rubber covering them, allowing it to attach securely to your vehicle. For added safety of the and your thermal unit, the Thermal tripod also includes two lanyards that attach to the 2-axis tripod to then attached to your vehicle and your thermal.

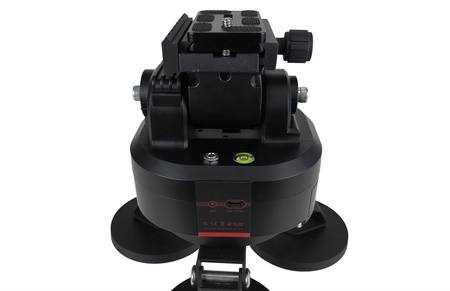

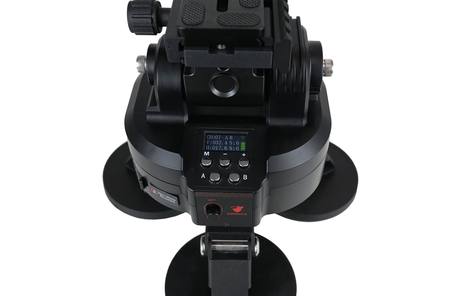

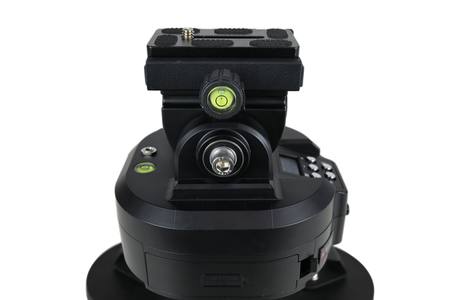

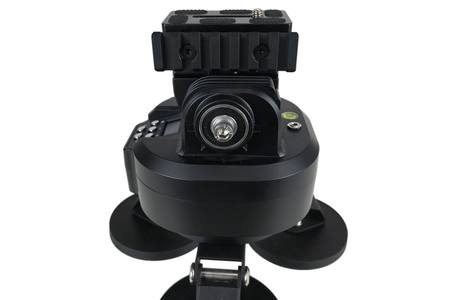

The Ranger thermal pan/tilt 2-axis tripod is driven by a stepper motor with high positioning accuracy. The pan/tilt has 8 horizontal and vertical speeds from 0.05rpm to 4 rpm. There are 2 preset positions and 2 user definable positions which can be set and recalled with one click. The 2-axis tripod can scan between points A and B at a set speed. It is equipped with a shutter cable socket, which can be connected to a camera for remote operation. The 2-axis tripod has a load capacity of 2kg and is suitable for ordinary SLR cameras & Thermal Imaging Units.

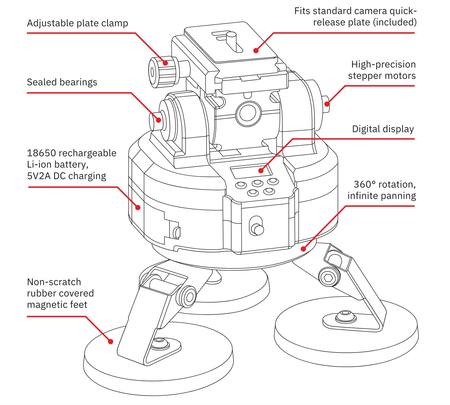

Features:

• High precision stepper motors

Stepper motors allow for precision movement on the Pan or Tilt angle. This allows you to make precise movements where identifying targets is key.

• 8-stage Adjustable Speed for Tilt & Pan

Tilt and Pan have 8 different speed options ranging from 0.05rpm to 4 rpm. Easily configurable on the remote for quick turning speeds or to slow & precise scans.

• 3-Feet, Strong magnetic attachment.

With 12 small magnets per foot, the 3 legged mount will magnetically stick to your vehicle of choice.

• Auto Scan mode (Auto+S)

You can program the 2-axis tripod to move between two points. The 2-axis tripod will consistently pan between Point A & B at a set speed while on the go!

• Quick Release PU70 ARCA with 1/4"-20 Screw
• 100 preset channels
• 2 user preset positions per channel (Point A & B)
• 2-axis tripod can handle thermals or optics upto 2 Kilograms

Specifications

• Pan angle: Infinite (360°)
• Tilt angle: *50°
• Pan Speed: 18%sec - 24%sec
• Tilt Speed: 0.1%sec - 4°sec
• Remote freq.: 2.4G
• Remote range: >30m
• Remote battery: 2xAAA
• Mounting: PU70 Arca Plate
• Thermal Mounting: 1/4 Screw (PU70 Plate)
• Power: 8 watt
• DC in: USB-C 5V 2A

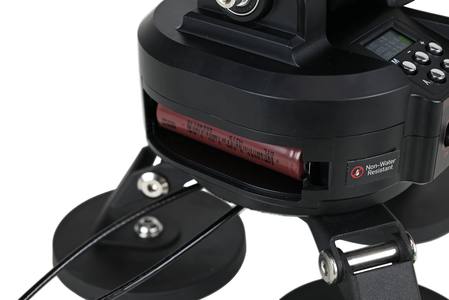

• 2-Axis tripod battery: 1x 18650 Li-lon (2000mAh)
• Size(without thermal unit): 122mm x 120mm x 130mm
• Weight: 855g

1-Year Manufacture Warranty

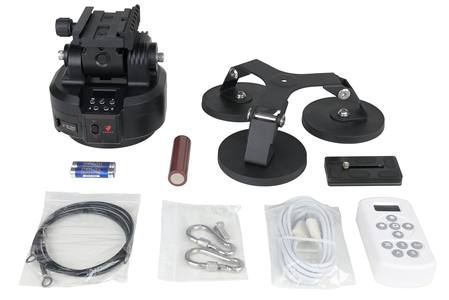

Included in packaging:

• 1x Ranger RC 2-axis tripod
• 1x 3x-foot Magnetic Stand
• 1x Remote
• 1x Long Safety Lanyard
• 1x Short Thermal Lanyard
• 2x Twist Lock Carabiner Clips
• 1x USB-C Cord
• 1x 18650 Lithium battery
• 2x AAA Batteries
• 1x User Manual

Disclaimers:

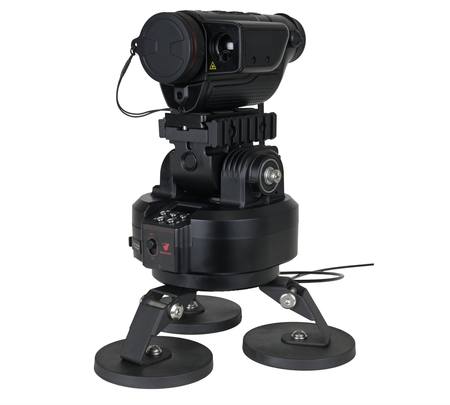

• Pictured Thermal imager is not included with Remote control 2-axis tripod.
• *Please Note: to achieve the full 50° of tilt, the side picatinny rail needs to be removed.
• This needs to be charge with at least 5V2Ah. Do not plug into your computer to charge.
• Ranger does not represent the Thermal Tripod Mount to be waterproof. Do not expose the Thermal Tripod Mount to rain or moisture.
