Guide TD433 Hand Held Thermal 35mm 400x300

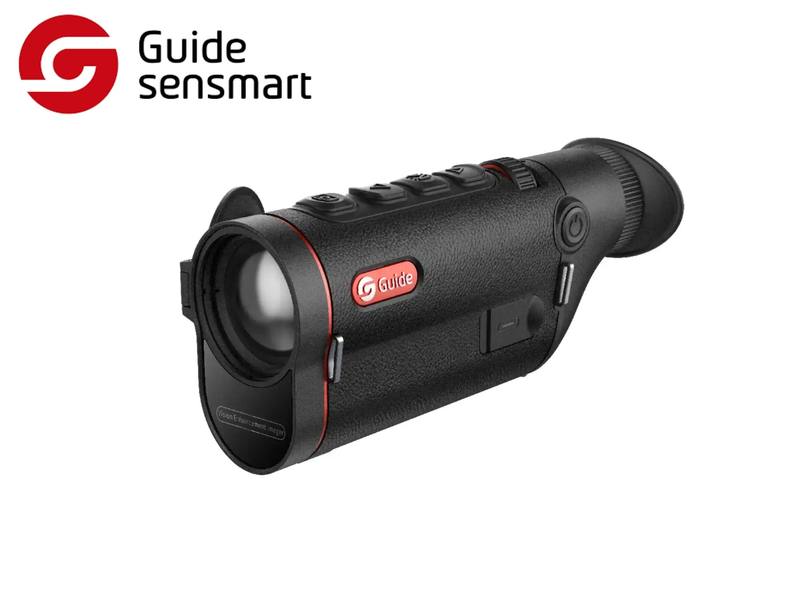

Handheld Thermal Imaging Monocular

The TD Gen3 Series handheld thermal imaging monocular, compact in design, yet powerful in function. The focusing roller allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with either hand. With an impressive 12-hour battery life and IP67, it is well-equipped to handle various outdoor challenges. Featuring Wi-Fi connection, it enhances the efficiency and enjoyment of your exploration.

High-sensitivity detector, NETD down to 20mK

The TD Gen3 Series features 12µm infrared detector with 600×512 and 400×300 resolutions, and offers multiple focal lengths, delivering impressively crisp images even in complete darkness.

Ambidextrous design, one-handed operation

The symmetrical housing design allows for easy operation with both left and right hands. Its button layout is ergonomically crafted to suit user habits, enabling one-handed operation.

Fine-tuning focus, scroll with fingers

The mini focusing roller design offers a unique experience of fast and precise fine-tuning, allowing users to adjust the focus with a simple scroll of one finger.

Upgraded visuals, enlarged AMOLED Display

Building on the previous generation, the TD Gen3 Series features a 0.36” AMOLED display with a 1280×960 resolution, delivering more vivid details and a more comfortable viewing experience.

Extended battery life, uninterrupted power

During observation, exploration and stalking in the field, the TD Gen3 Series offers an impressive 12-hour runtime. The replaceable 18650 battery supports blind installation in the dark, with no need to distinguish between the positive and negative terminals.

Smart recording, expanded built-in storage

The upgraded smart recording function can capture videos with sound. It’s built-in storage of up to 32GB allows users to store over 100,000 pictures without worrying about running out of space.

Technical Parameters

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14µm
• Resolution: 400×300@12µm
• NETD: 25mK
• Frame rate: 50Hz

Lens

• Objective lens: 35mm, F1.0
• Field of view: 7.9°×5.9°
• FOV m@100m: 14×10
• Magnification: 2.9x~11.6x
• Detection range: 1800m/1950yd
• Focus: Manual

Display

• Display type: 0.36'' AMOLED 1280×960
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x

Hardware

• WIFI: 2.4G, 5G
• Interface: USB-C
• Others: Microphone, Bluetooth

System

• Recording function: Photo/Video (Audio recording included)
• Memory capacity: 16GB

Power

• Battery type: Single, Replaceable 18650 Battery
• Operating time: 12 hours

Environmental

• Operating temp.: -20°C to 50°C / -4°F to +122°F
• Encapsulation: IP67

Physical

• Weight (g/oz): 355/12.52
• Size (mm/in): 159×54×74/6.26×2.13×2.91
• Standard: Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
• Optional: Bluetooth Remote Control, 18650 Battery

Warranty period on new thermal optics:

• Pulsar: 3 Year manufacturers warranty
• Guide: 3 Years manufacturer warranty
• ThermTec: 3 Years manufacturers warranty

*Guide: From date of purchase from authorised Guide reseller for the first owner with proof of purchase
