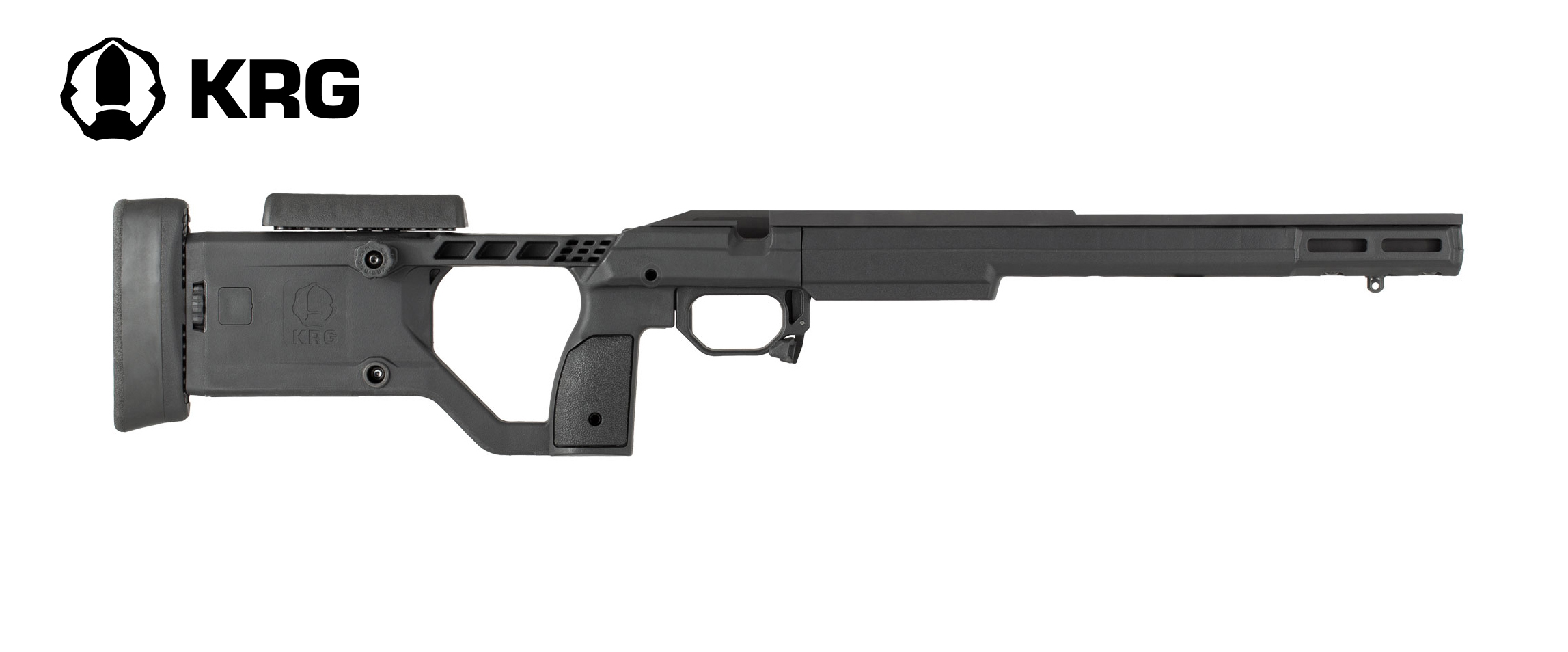

KRG X-Ray Fixed Chassis for Tikka T3/T3x/CTR Black

X-Ray Chassis Unprecedented value...This is what the X-Ray chassis provides to you.

When you pick up the X-Ray, it will feel nice and light compared to other chassis. You'll have nearly identical ergonomics to the Whiskey-3 with only a little more time involved in adjusting the different aspects like the length of pull.

Furthermore, you'll have all the standard benefits of an adjustable rifle stock; i.e. chassis, like the use of AICS magazines, a variety of mounting points for slings, barrier stops, etc., and aluminum block bedding for the action while not having to sell off a kidney to pay the price of admission.

To accomplish KRG's design intent, they kept the features that everyone wants and needs and eliminated those that weren't necessary or featured on other replacement rifle stocks. Then they utilised efficient manufacturing processes to keep production costs down and in turn keep the price to the shooter down. The end result is a hybrid aluminum and polymer chassis that you'll love.

KRG are proud to present the X-Ray chassis, the result of years of careful design, thought, refinement, and hard work.

The Tikka inlet accepts T3, T3x, and CTR versions, however slight mods may be required on the trigger-guard for the T3 TAC A1 to function properly. Tikka rifles accept AICS pattern mags with the exception of the Magpul AICS polymer mags.

The front action screw requires an extended bit (3/16 hex for Rem700 or 5mm hex for Tikka). Alternatively the forend can be removed for direct access to the screw.

All chassis take AICS magazines with nothing extra needed, the magazine is not included.

Actions with trigger hangers will not work without mods to the chassis, hanger, or both.

Features

Forend

• Polymer for light weight and to eliminate heat transfer to/from the shooter's hand
• MLok slots on sides for mounting flexibility
• Mounting holes at various positions will take L2 Picatinny rails, Tripod Mount, Barrier stop, etc
• Access hole for action mounting screw, so you can remove the action without removing forend

“Backbone”/Chassis

• Aluminum backbone runs to tip of forend for maximum stiffness and modularity
• Utilizes radius bedding, which is CNC'd into aluminum backbone for consistent contact between action and chassis
• Tikka inlets have hardened stainless steel recoil lug instead of aluminum ones found on stock T3’s
• Designed for 5 or 10 round AICS magazines (with or without front spacer plate in T3
• Barrel contours accepted: 1.25" for 4" in front of action face, then 1.20" straight to end of forend. A 1.25" straight cylinder barrel will fit but we feel that the clearance is too minimal. We recommend a varmint or medium palma contour to keep proper balance

Trigger Guard/Mag catch

• Similar in shape to TRG trigger guard. Made from reinforced polymer for added strength and less cold/heat transfer to the shooter's hand
• Will accept Barnard trigger for T3 as well as factory trigger
• Mag catch is the same as the Whiskey-3 but the catch extender button is an optional item

Cheekpiece/Handgrips

• Cheekpiece infinitely adjustable within range (1” travel)
• Cheekpiece can be quickly removed and re-installed, uses a clamp and thumbscrew design
• The thumbscrew can be positioned on either the right or left side of the chassis
• Includes a simple feature to make the cheekpiece return to the exact height you set it
• Cheekpiece can be moved forward or backward with one alternate position
• Cheekpiece made of polymer to not transmit heat to or away from your face
• Small grips are standard fitment. The larger grip size is an option during checkout or in our Products/Accessories section of the website

Length of Pull (LOP)

• Adjustable with spacers in 3/8" increments with nearly 2 1/4” of adjustment range
• Minimum LOP range varies slightly between versions but is roughly 12.7”-13” and can be extended to 14.8-15.1" with 6 spacers (technically even longer is possible with even more spacers)
• X-Ray's include our 1-3 LOP kit which includes 3 spacers and the hardware to mount either 1, 2, or 3 allowing a max LOP of about 13.8"

Buttstock

• Single piece body made of reinforced polymer material
• Heavy internal ribbing provides great strength
• Mounting points for external QD cup or for our Sling Loop/QD mount on either side
• Built in thumbshelf for same-side-thumb-grip shooters
• Entire buttstock assembly can be used on Whiskey-3 if you should desire

Buttpad

• High Quality KRG recoil pad with Tool-less height and cant adjustments
• Adjusted with hex wrench

Mounting features for slings, monopods, bag rider, etc

• Buttstock has one position on each side for external QD cup and one position on each side for Sling Loop/QD mount (optional accessories)
• Buttstock includes mounting points for an optional bag rider/butthook or MOE L2 Picatinny rail
• Harris bipod stud included on forend
• Ambi QD sling plate can be mounted and provides 3 positions for QD sling or HK hook sling attachments

Optional Accessories

• Large selection of accessories from sling mounts to tripod mounts
• ALL X-RAY STOCKS COME WITH ONE MOE L2 RAIL
• X-Ray Tool-less LOP will further upgrade your adjustable rifle stock

Materials/Finishes

• Most aluminum parts are hard anodized (Type III)
• All fasteners are stainless steel, some with black oxide coating, some are without
• Steel parts are salt bath nitrided or stainless steel
• Grip panels, forend, buttstock are injection molded reinforced polymer

Weight: 3 lbs w/o magazine

Colour: Black
