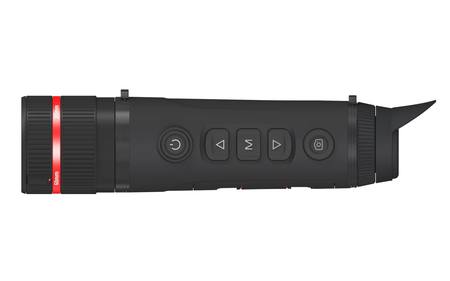

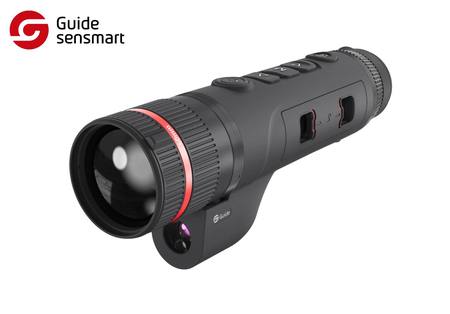

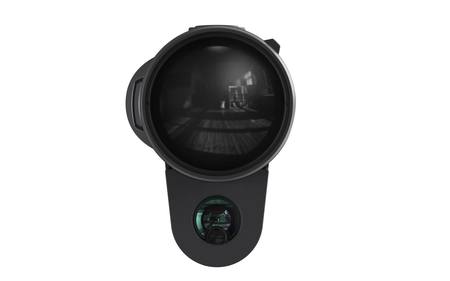

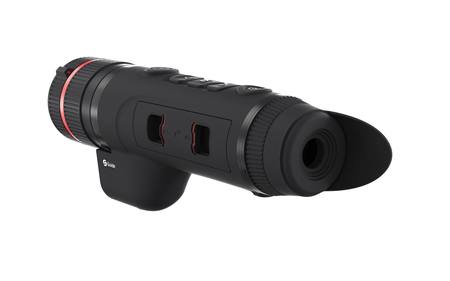

Guide TJ660LZ 20-60mm 640x512 Thermal Monocular with Laser Rangefinder

Key Features

  • NETD<20mK Detector
  • Full-HD 1920x1080 AMOLED display
  • up to 1000m Laser range
  • IP67 Encapsulation

The Guide TJ660LZ is equipped with a flexible 20mm/60mm DFOV lens, allowing you to switch between wide-area searches and long-distance target identification. Its 12µm high-sensitivity infrared detector and full HD display provide excellent night vision. Designed for two-handed operation, it includes features like laser ranging and video recording, and offers up to 10 hours of battery life, making it ideal for nighttime adventures.

Equipped with a highly sensitive IR detector and a NETD as low as 20mK, this device can detect even the slightest temperature differences, resulting in sharper and clearer images. The 20mm~60mm dual FOV lens allows for easy focal length adjustments and precise focus fine-tuning, making it perfect for both wide-area and long-distance observation. It can detect targets up to 3100 metres away. The display provides an exceptional visual experience, akin to watching a 70-inch home theatre screen from 2.5 metres.

The integrated laser rangefinder can detect distances up to 1000 metres, enhancing the accuracy of long-distance measurements. The TJ660LZ also includes a smart system that automatically toggles between sleep and wake modes depending on the device’s orientation, which helps to reduce power consumption and extend battery life.

Features

  • Thermal detector: 640 x 512@12µm, NETD<20mK
  • 3x optical zoom, wide/narrow FOV switch in one step
  • Full-HD 1920 x 1080 AMOLED display
  • Built-in laser range finder up to 1000m
  • Unique button and battery design enables blind operation in the dark
  • Adaptable for left-and right-handed use
  • Video recording including sound
  • IP67, 10 hours of operation
  • Dual Focus, Unfinite Views
  • Ultra-large display
  • Intelligent sleep mode

Specifications

Sensor

  • Type Uncooled VOx Infrared Detector, 8 to 14µm
  • Resolution 640×512@12µm
  • NETD 20mK
  • Frame rate 50Hz

Lens

  • Objective lens 20mm, F0.9; 60mm, F1.1
  • Field of view 22.5°×16.7°; 7.2°×5.4°
  • FOV m@100m 40×29; 13×9
  • Magnification 1.5x~12.0x; 4.5x~36x
  • Detection range 1000m/1090yd; 3100m/3350yd

Display

  • Display type 0.39'' AMOLED 1920×1080
  • Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
  • Eyepiece Exit pupil distance 16 mm; Diopter: -6 to +6; Zoom: 18x

Hardware

  • Laser rangefinder 1000m/1090yd
  • WIFI 2.4G, 5G
  • Interface USB Type-C (Power supply/USB2.0)
  • Others Microphone, Compass, Gyroscope, Bluetooth

System

  • Recording function Photo/Video (Audio recording included)
  • Memory capacity 64GB

Power

  • Battery type 2 replaceable 18650 batteries
  • Operating time 10 hours

Environmental

  • Operating temp. -20°C to 50°C / -4°F to +122°F
  • Encapsulation IP67

Physical

  • Weight (g/oz) 784/27.65
  • Size (mm/in) 259×97×66/10.20×3.82×2.60
  • Standard A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
  • Optional Bluetooth remote control, 18650 battery
