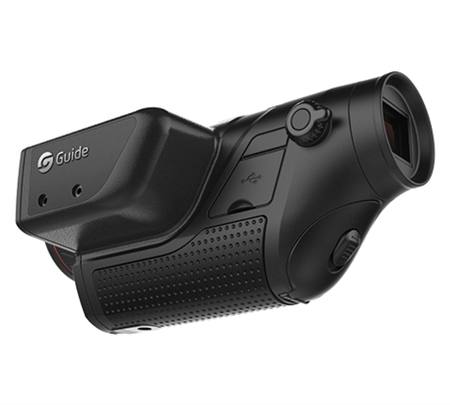

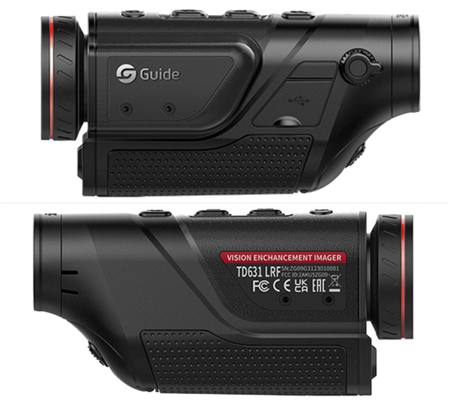

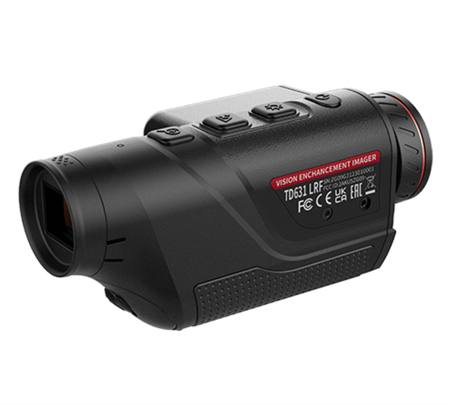

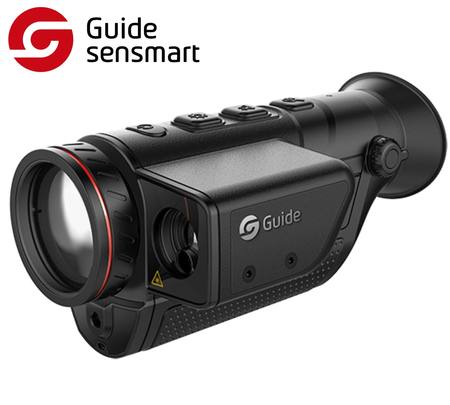

Guide TD631 LRF Thermal Handheld Monoculars

The TD Gen2 LRF Thermal Monocular Series is the industry's first entry-level full-featured handheld thermal imaging monoculars. While inheriting the characteristics of the previous generation, such as being lightweight, portable, easy to operate, and durable, it integrates a high-precision laser rangefinder module to accurately detect targets within 600 meters. It adopts an AMOLED display, providing clear imaging and a comfortable viewing experience, making it the ideal equipment for outdoor night vision.

Thermal Monocular Features

• 640x480 IR Resolution

• 35mm/F1.0 Focal Length

• Manual Focusing

• 8 Hours Strong Battery Life

• Integrated Rangefinder (range up to 600m)

• High-brightness AMOLED Display

• Enhanced Image Processing Algorithms

• Real-time Sharing with WIFI

Thermal Monocular Specifications

Infrared detector

• Detector type: Uncooled VOx Infrared

• Detector resolution and pitch: 640 × 480, 12 µm

• Spectral range: 8 to 14 µm

• NETD: =35 mk

• Frame rate: 50 Hz

Lens

• Focal length: 35 mm; F1.0

• Focus: Manual

• Field of View: 12.5° × 9.4°

• Optical zoom: 1.7x

• Digital zoom: 1x, 2x, 4x

Display

• Display type: 0.23" AMOLED

• Resolution: 640 x 400

• Eyepiece: Exit pupil distance=12 mm; Diopter: -4 to +2; Zoom: 18x

• Video output: Analog video

Power

• Battery type: Single Replaceable 18650 battery

• Battery life: = 8 hours

Interface

• USB: Type C

• Mechanical interface: UNC ¼"-20 (Tripod mounting), Mechanical expansion interface

Range Performance

• Detection range: 1400 m

Laser rangefinder

• Max. measuring range: 600m

• Others: PIP, Hot spot tracking

Functions

• Scene modes: Enhanced, Highlight and Natural

• Color palettes: Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot

• PIP: Available

• Hot spot tracking: Available

• Rough ranging: Available with APP

• WIFI: 2.4 G

• Supported Application: TargetIR

• Firmware OTA: Upgrade device firmware via app connection

Environmental

• Storage temperature range: -30°C to 60°C

• Humidity: 10 % to 95 % non-condensing

• Shock: 30 G at 11 ms half-sine pulse

• Drop: 1 m

• Encapsulation: IP66

• Certification: IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2

Physical:

• Weight: = 399 g

• Dimensions: 150 × 77 × 74 mm

Included in box...

• Guide TD631 LRF

• Lens cover and lanyard

• Battery charger

• Single 18650 battery

• USB Type-C cable

• Wrist strap

• Carry bag

• Eye mask

• Quick use guide

• Warranty card
