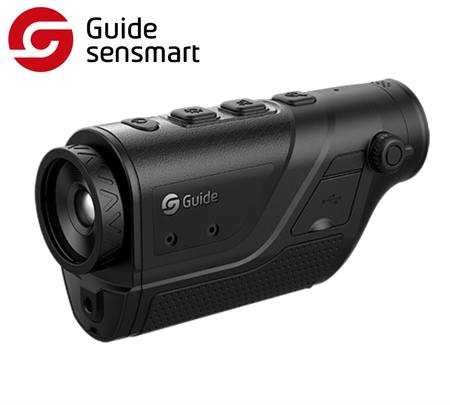

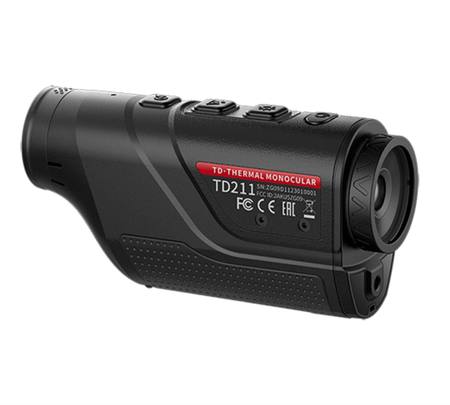

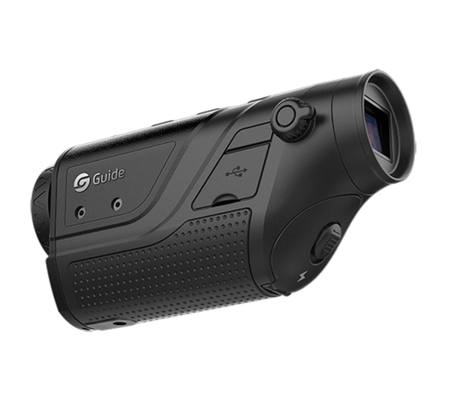

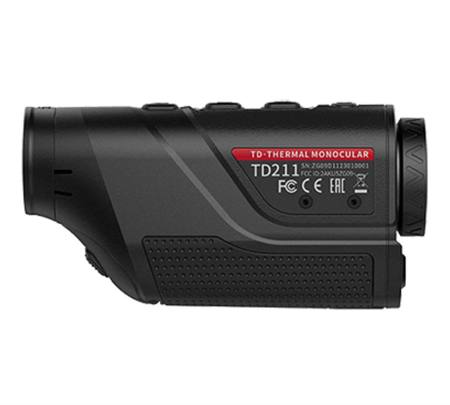

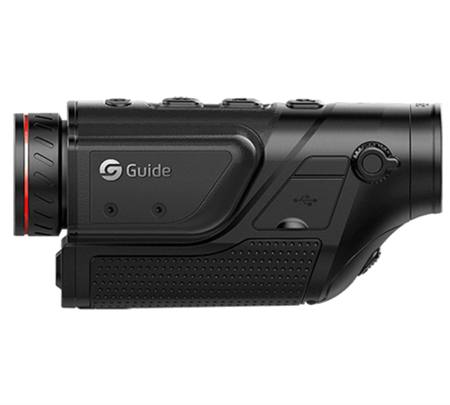

Guide TD211 Thermal Monocular Handheld

TD Gen2 thermal monocular series follows the design of traditional optical equipment. It is lightweight, portable, and simple to operate for a wide range of application scenarios for handheld thermal imaging monoculars. With a high-brightness AMOLED display, the TD Gen2 thermal handheld series provides clear imaging and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision

This Thermal imaging unit runs with 18650 Flat top type batteries (174106)

Thermal Monocular Features

• Tiny and Powerful: A lightweight body, that can be controlled by one hand, is comfortable to hold and has no burden to carry and explore.

• 10 Hours Strong Battery Life: Over 10 hours of active use, 3 hours improvement over the previous generation. Standard 18650 battery, easy to purchase.

• New User Interface design: New user interface design to simplify operation; iconized operation without language restrictions.

• Real-time Sharing by WIFI: Connect the APP on the phone via WIFI, sharing the wonderful moment in real-time.

• OTA Upgrade: Support device firmware updates by connecting to TargetIR APP for high efficiency.

Thermal Monocular Specifications

Sensor

• Type Uncooled VOx Infrared Detector, 8 to 14 µm

• Resolution 256×192, 12 µm

• NETD =50mK

• Frame rate 50Hz

Lens

• Focal length 10 mm, F1.0

• Field of view 17.5°×13.2°

• Optical zoom 0.7x

• Digital zoom 1x, 2x

• Focus Focus-free

Display

• Display type 0.23’’ AMOLED

• Resolution 640×400

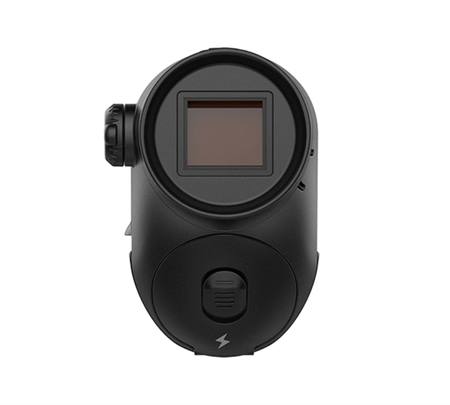

• Eyepiece Exit pupil distance=12 mm; Diopter: -4 to +2; Zoom: 18x

• Video output Analog video

Range Performance

• Detection range 400 m

Hardware

• Others PIP, Hot spot tracking, Rough ranging (Available with APP)

Functions

• Scene modes Enhanced, Highlight and Natural

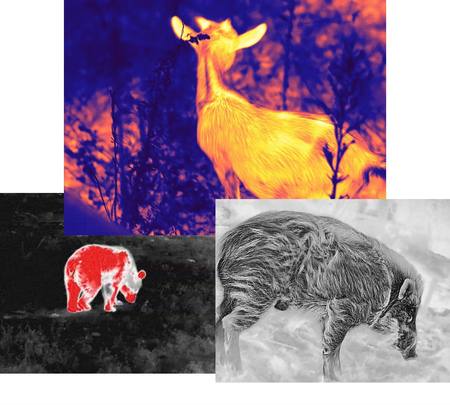

• Color palettes Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot

• WIFI 2.4 G

• Supported Application TargetIR

• Firmware OTA Upgrade device firmware via app connection

Power

• Battery type Single, replaceable 18650 battery

• Operating time = 10 hours

Interface

• USB USB Type-C

• Mechanical interface UNC ¼"-20 (Tripod mounting), Mechanical expansion interface

Environmental

• Storage temperature -30 °C to 60 °C

• Humidity 10 % to 95 % non-condensing

• Shock 30 G at 11 ms half-sine pulse (as per IEC60068-2-27)

• Drop 1 m

• Encapsulation IP66

• Certification IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2

Physical

• Weight =280 g

• Size 140 × 45 x 74 mm

• Standard A device, lens cover and lanyard, Wrist strap, Carry bag, Eye mask, Battery charger, single 18650 battery, USB Type-C cable, Quick use guide, Warranty card

Warranty period on new thermal optics:

• Pulsar: 3 Year manufacturers warranty

• Guide: 1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty

• InfiRay: 2 Year warranty: https://www.infiray.com/uploads/file/after-sales-service-policy.pdf

Please note: The manufacturer warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period than what is specified for the units above. The warranty does not cover misuse or accidental damage caused by the operator.
