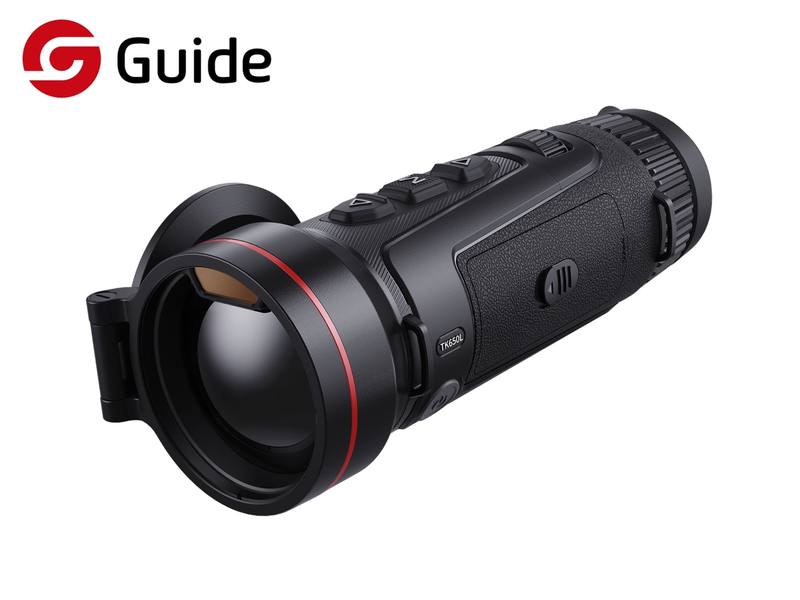

The KODIAK 3.0 thermal imaging monocular integrates a laser rangefinder and shutterless technology while maintaining a compact design. The focusing roller allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with either hand. Optimized for hunting and outdoor exploration, it brings reliable, clear thermal vision in all challenging field environments.

Key Features

• 640x512 IR Resolution
• 15mK NETD
• 1.03" AMOLED 2500x2560 Display
• 35mm, F0.9 Lens

Compact Design, Lightweight and Portable

Weighing only 524g – roughly the weight of a bottle of water, bringing you an ultra-lightweight outdoor hunting experience far beyond its class.

640×512 Infrared Resolution, High-Sensitivity Detector

Featuring a high-sensitivity 640×512@12µm detector, it accurately captures subtle heat signatures for clearer target recognition and improved image detail.

Complete ApexVision S1 System Architecture

The KODIAK 3.0 Series is equipped with the new-generation ApexVision thermal imaging system. With an NETD of =15mK, it clearly captures subtle temperature differences of targets and delivers rich, delicate image layers.

Full-HD 2560x2560 AMOLED Display

Equipped with an ultra-large 1.03'' AMOLED display of 2560x2560 pixels resolution, KODIAK 3.0 Series is capable of delivering better image quality and presenting more details and information about identified targets.

50mm Lens, See Farther

Multiple focal lengths give KODIAK 3.0 Series convenience for long-distance observation and hunting, the 50mm F0.9 lens can detect targets up to 2600m.

Built-in LRF, Precise Target Distance

The built-in LRF module provides a long laser rangefinder of up to 1200m/1300yd, helping users to detect and locate the targets for making quick decisions.

Shutterless Design, Keep Every Movement In View

Combining a 50Hz high frame rate with shutterless 3.0 technology, KODIAK keeps thermal imagery smooth, responsive, and uninterrupted. Follow fast-moving targets with greater clarity — without motion stutter or image freezes getting in the way.

3-Second Fast Startup, Ready When It Counts

The KODIAK 3.0 boots up in just 3 seconds, grab and start observation right away. It delivers fast response for unexpected outdoor scenarios, ensuring you never miss any heat source targets.

Ambidextrous Design, One-handed Operation

Symmetrical ergonomic chassis fits comfortably in both left and right hands. Equipped with a physical focus wheel, it enables smooth, effortless single-handed focus adjustment.

IP67 Waterproof Rating, Dual Battery Design

Equipped with an IP67 waterproof rating, ensuring it can withstand the most challenging weather conditions. Paired with dual batteries delivering up to 11 hours of combined runtime, you can stay focused on tracking targets without worrying about running out of power mid-outing.

Specifications

Sensor

• Core Technology: Powered by the complete ApexVision S1 architecture—the ApexCore S1 detector, Nexus 1.0 platform, and Hyper-Light 3.0 algorithm.
• Detector Type: Uncooled VOx IR Detector, 8–14 µm
• Resolution: 640×512 @ 12 µm
• NETD: 15 mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 35 mm, F0.9
• Field of View: 12.5°×10.0°
• FOV (m@100 m): 21.9×17.6
• Magnification: 2.8–22.4×
• Detection Range: 1800 m/1950 yd
• Focus: Manual

Display

• Display Type: 1.03? AMOLED 2560×2560
• Colour Palettes: White Hot, Black Hot, Amber Sepia, Red Hot, Iron Red, Blue Hot, Green Hot
• Eyepiece: Eye relief: 30 mm; Diopter: -6 to +6

Hardware

• Laser Rangefinder: 1200 m/1300 yd
• Wi-Fi: 2.4 GHz, 5 GHz
• Interface: USB-C (Power Supply/USB 2.0)
• Others: Microphone, Bluetooth

System

• Recording Function: Photo/Video Recording (with Audio)
• Storage Capacity: 64 GB

Power

• Battery Type: 1 × replaceable dedicated battery
• Operating Time: 5.5 hours

Environmental

• Operating Temp.: -20°C to 50°C / -4°F to 122°F
• IP Rating: IP67

Physical

• Weight (g/oz): 524/18.48 (battery included)
• Dimensions (mm/in): 182×67×79/7.17×2.64×3.11
• Package Contents: Device, Hand Strap, Neck Strap, Carry Bag, Lint-Free Cloth, 2 × Dedicated Batteries, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
• Optional Accessories: Bluetooth Remote Control, Dedicated Battery
