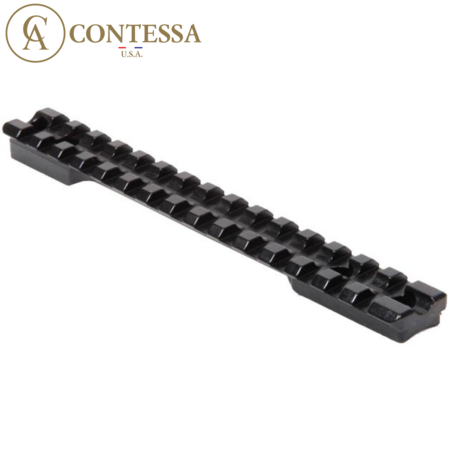

Contessa Remington 700 Long Action 20MOA Base

A stands for long action. This mount is suitable for rifles Remington 700, 78 with a long action.

When a rifle is available in more than one action length, only two-piece mounts are interchangeable between these rifles (a two-piece mount made for rifles Remington 700, 78 short-action (SA) can also be mounted on rifles Remington 700, 78 long-action (LA)). One-piece mounts will only fit a rifle with a specific action length (a one-piece mount made for rifles Remington 700, 78 short-action (SA) will not fit rifles Remington 700, 78 long-action (LA)).

Rifles Remington 700, 78 LA (long-action), Mauser M96, Mauser M97, Sauer 100, Sauer 101, Bergara B14 (LA), Haenel Jäger 10 and Roessler Titan 16 have actions of the same dimensions, which is why they share the same mounts.

20 MOA inclination is only needed when the scope runs out of elevation. For example, when shooting at the range of 100 m, shooter gains 58.2 cm / 100 m of additional elevation range with a 20 MOA mount. This is approximately 5.8 Mrad of elevation. To make things even clearer – if the target was placed at 100 m, the scope with 20 MOA inclined rail would aim to the center of the target while the rifle’s barrel would aim 58 cm higher than the scope. This gives the shooter extra elevation needed for long range shooting. If you plan to shoot on distances longer than 600 meters, use of rail with 20 MOA is greatly recommended. There is no negative effect of the inclined Picatinny rail in the mounting setup if you only shoot on shorter distances. The same goes also the other way around, since if you don’t shoot on extreme distances then Picatinny rail with inclination is not needed.

Mounting instructions

Remove all the stains (grease, oil etc.) from the rifle's receiver with a cleaning fluid (acetone). Once the surface is clean and dry, check whether the screws match the rail and the holes on the receiver. Make sure that the Picatinny rail is compatible with the rifle by inspecting the mounting holes on both. Before mounting the rail permanently, apply a minimal amount of thread-locking fluid 278 or 648 on screws and contact surfaces. Be careful not to get the fluid in or near the mounting holes. Carefully clean the remaining excess fluid around the rail with a cleaning fluid. Using a torque driver, screw the screws appropriately (up to 2.2 Nm) – do not overtighten.\

Specifications:

• Manufacturer: Contessa
• Mount series: Contessa Picatinny Rails
• Made in: Italy
• In production since: No
• Warranty: 30 years
• SKU: PH02/20
• Length.: 164mm
• Material: Steel
• Color: Black
• BH height: 8.5 mm
• BH height.: 8.5mm
• H height.: 0
• Inclination: 20 MOA
• Base type: Picatinny
• Scope / Sight type: Picatinny Rail
• A : 21.94 mm
• B : 113.9 mm
• C : 15.24 mm
