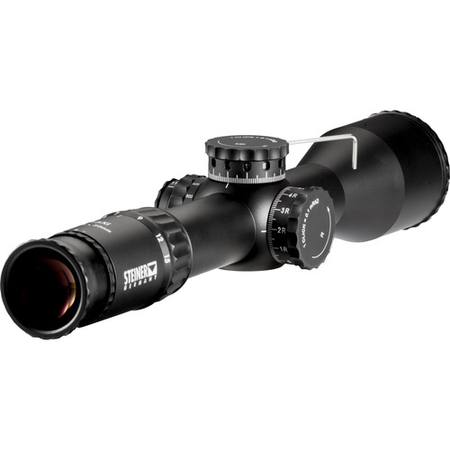

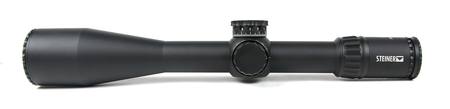

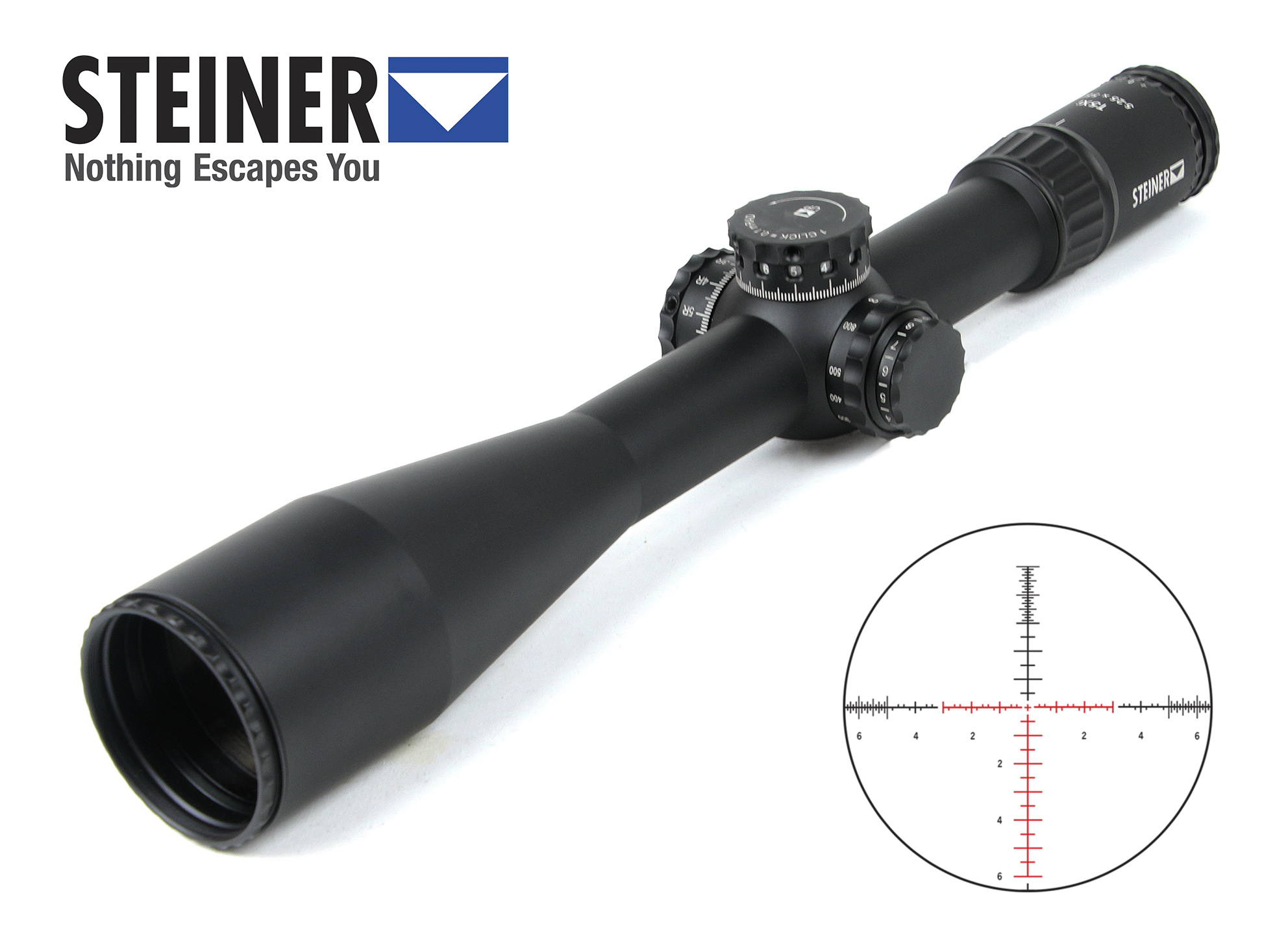

Steiner T5Xi 5-25x56 Rifle Scope 34mm SCR Illuminated MOA

The 5-25x56 T5Xi scope from Steiner combines fully anti-reflection coated optics, a rugged waterproof body, and an illuminated reticle. The optical system features a 56mm objective for gathering more light in low-light conditions and a 5-25x zoom for medium-to-long range target acquisitions. Another highlight is the Special Competition Reticle (SCR) reticle, which consists of three very thin posts and a fine milling crosshair with an illuminated central area and a truncated top line. The reticle is located in the first focal plane and has densely spaced MIL-based hash marks. To provide clear visibility of the reticle's pattern in various lighting conditions, there are 11 illumination brightness levels: seven for daylight and four for nighttime. To help you compensate for wind and ballistic motion, the scope has 15 MIL windage and 26 MIL elevation adjustment ranges with 0.1 MIL clicks.

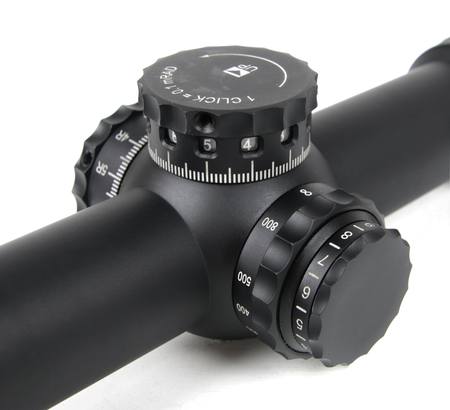

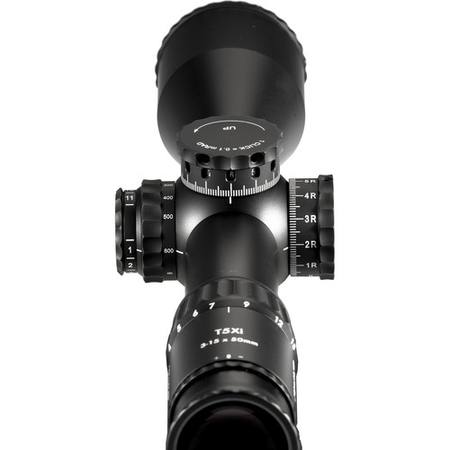

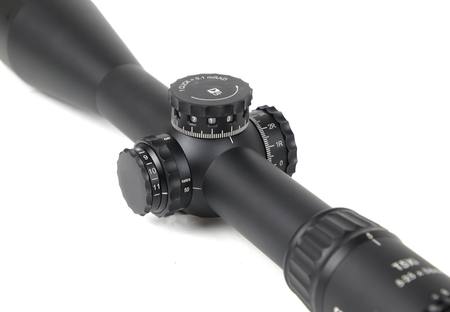

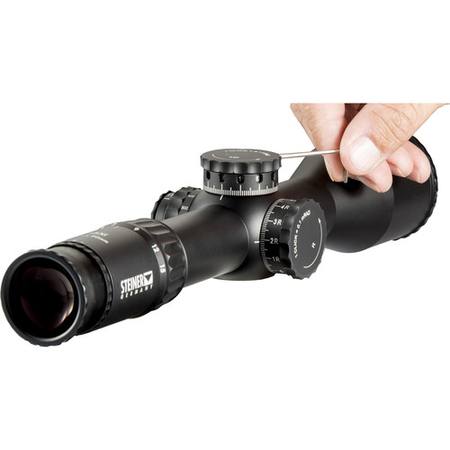

The low-profile turrets on this Steiner scope are resettable and have hard stops at zero positions to prevent going over the range. The adjustment knobs and dials are wide and offer a comfortable non-slip grip. The elevation dial also has a second rotation indicator (with an integrated window) to avoid confusion about where you are on the dial. A tapered eyepiece ring with a zoom factor scale enables an easy verification of your magnification setting while you are aiming, without taking your attention from your target. If you need an instant zoom adjustment, use the included eyepiece throw lever for one-finger operation. To make sure that your personal diopter setting cannot be accidentally bumped off its position, the diopter ring has a locking mechanism. For exceptional strength and durability, the body offers a 34mm single-piece maintube. It is shock resistant, fogproof, and waterproof submersible to 33'.

Steiner scopes manufactured after 2014 feature a transferrable life time warranty (30 years) against performance defects. Outside of these periods a flat rate exchange policy applies.

Features of the Steiner T5Xi Scope

• One-Piece Oversized 34mm Tube: increases strength and reliability and provides greater elevation and windage adjustments for longer ranges

• Special Competition Reticle (SCR™): designed by Steiner for precision competition use. Located on the first focal plane, it offers an extended illumination area, 2/10-mil windage and 1/2-mil holdover lines. 1/10-mil ranging brackets allow for precise distance ranging.

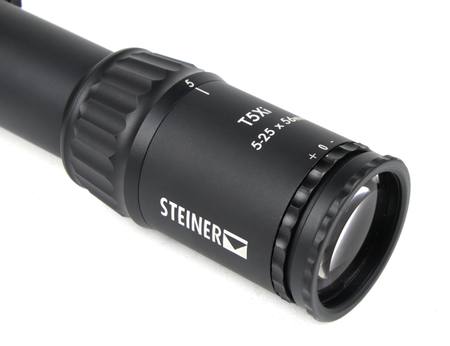

• Tapered, All Metal Magnification Ring: angled so the shooter can see his magnification setting while positioned directly behind the scope

• Large, Easy-to-Grip Windage/Elevation/Parallax/Illumination Knobs: for positive, non-slip adjustment of the diopter, reticle and parallax settings

• Low Profile Turrets: parallax adjustment and illumination controls are less likely to hang up or snag during movement

• Second Rotation Indicator: a Steiner exclusive that shows each mil or elevation through the indicator window on the elevation turret. After the first 120 clicks (MIL), the numbers on the scale change automatically preventing the shooter from getting lost on the dial.

• Locking Dioptor: prevents accidental rotation of the diopter

• Waterproof/Fogproof/Shockproof: durable construction that canstand up to any cold or wet condition, waterproof to depths of 33 feet and impact tested on all optical and electronic components

• Consistent Eye Relief: and a generous eye box throughout the magnification range eliminates the need to reposition your eye when changing magnification

• Throw Lever / Lens Covers: that allow quick, easy magnification changes and Tenebraex covers protect the lenses from dust and moisture

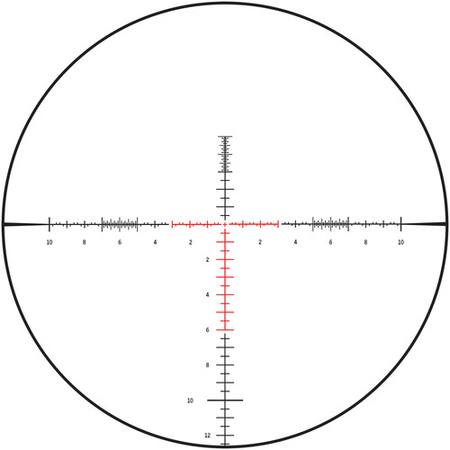

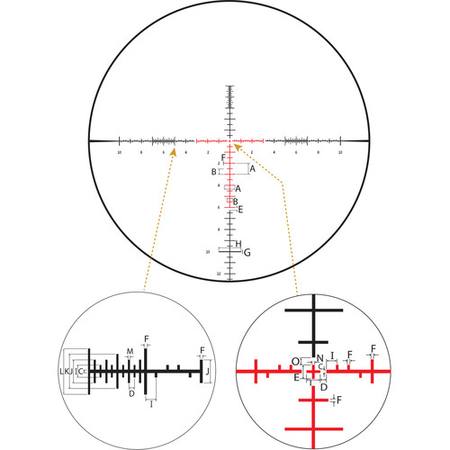

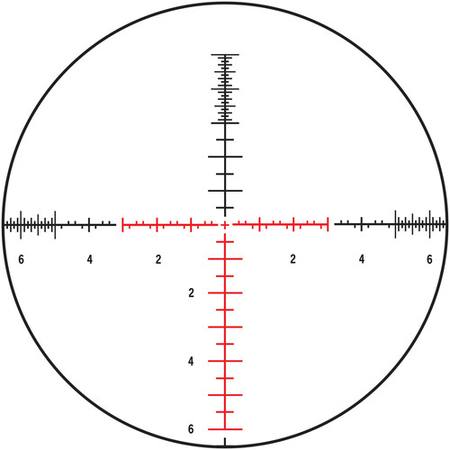

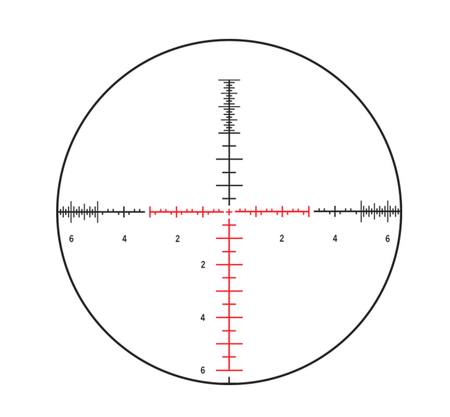

Steiner SCR Illuminated Reticle

• First focal plane

• Designed for special competitions

• Three fine posts

• Fine milling crosshair with an illuminated centre and truncated top

• MIL-based measurements

• Seven brightness levels for use in daylight, four brightness levels for use at night

Specifications of the Steiner T5Xi Scope

• Magnification: 5-25x

• Tube Diameter: 34 mm

• Objective lens: 56mm

• Field of View at 100 meters   21.5 - 4.3`

• Eye Relief: 3.5 to 4.3 in

• Exit Pupil: 2.3 - 11.2 mm

• Length: 16.6 in

• Weight: 33 oz

• Diopter Adjustment Range: -3 to +2 dpt

• Elevation Adjustment Knob: Resettable Zero

• Illumination Control: Illuminated Reticle with 4-day/7-night levels, LED, Red

• Wind/Elevation Click Value: 0.1 Mil Rad

• Elevation Range at 100 m: 90 MOA

• Wind Range at 100 m: 54 MOA

• Parallax/Focus: Side Focus

• Parallax/Focus Range: 50 yds to infinity

• Nitrogen Filled: Yes

• Operating Temperature Range: -13 to +145 Fahrenheit

• Lens Cap: Yes

• Waterproof/Fogproof:  Submersible to 33 ft.

• Battery: CR2450

• Special Features: Resettable turrets, 2nd rotation indicator, locking diopter
