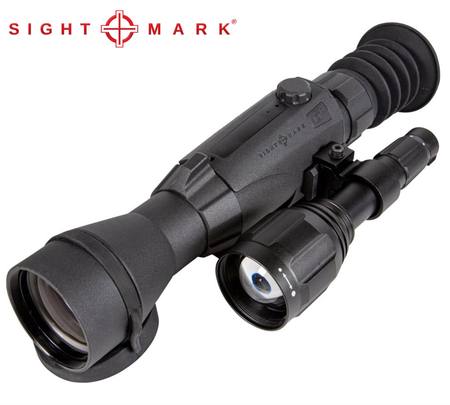

Sight Mark Wraith 4K Max 3-24x50 Daytime / Nightvison Digital Riflescope

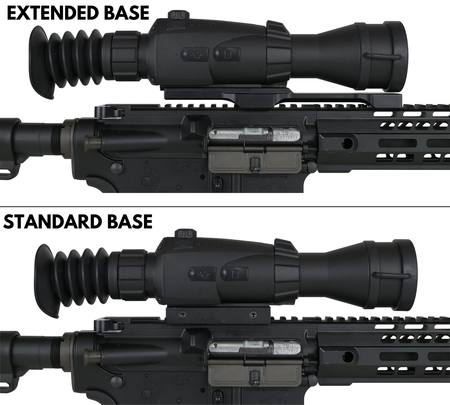

This version features a Long Extended base rather than a Short Base.

Sightmark’s Wraith 4K Max digital riflescope is a harmony of technology, power and precision. In low-light conditions, the Wraith 4K Max utilizes an enhanced ultra-high definition 4000x3000 digital CMOS sensor to detect objects up to 300 yards away, and in daylight, this detection range is even further.

The Wraith 4K’s sharp 1280x720 display resolution delivers crystal-clear imaging while 3-24x digital magnification gives users the versatility to adjust as needed. The Wraith 4K’s 850nm IR illuminator features 90 minutes of operating time on max, and its night vision mode and daytime colour mode offer crisp, vibrant views of the environment. With a hardy aluminium housing, the Wraith 4K boasts built-in UHD 4K video recording with audio, 10 reticle options and an IPX5 water-resistant rating. Its rechargeable, internal battery provides up to 8 hours of power.

Features:

• Enhanced Ultra-High Definition 4000x3000 Sensor
• Extended Scope Base
• Crystal-Clear 4K Digital Imaging
• 300-Yard Detection Range
• Night Vision Mode
• Daytime Color Mode
• Sharp 1280x720 HD Full Color Display
• 3-24x Magnification
• Detachable 850nm IR LED Illuminator
• Built-In Video Recording
• 10 Reticle Options In 9 Colors
• Up To 8-Hour Run Time On An Internal Rechargeable Battery
• Additional Weaver Rail For Accessories
• 5 Firearm Profile Saves

Daytime / Night Vision Scope Specifications

Electronic components

• Type of sensor: CMOS sensor
• Sensor resolution, pixels: 4000x3000
• Display type: LCOS
• Display Resolution: 1280x720p
• Built-In Video Recorder Availability: Yes
• Maximum memory card supported: 256 GB
• Format of video clip: MP4
• Resolution of video clip: 4K/1080/720
• Format of photo files: JPEG
• Resolution of photo files : 1080/720
• Memory capacity: Approximately 1.75 hours of video with 64 GB SD card (4k@30 quality level).

Optical characteristics

• Magnification   3-24
• Lens diameter: 50 mm
• Digital zoom: 1-8x
• Relative Aperture: 1.2 D/f'
• Horizontal Field of View: 6°
• Field of View, (@100m): 10.5 m
• Field of View (@100yd):  31.5 ft
• Eye Relief: 2.7" / 69mm
• Diopter adjustment, (dptr): +/-5

IR-illuminator

• Emitter   LED
• IR Wavelenght: 850nm
• Equivalent IR Power: 2500mW
• Battery Life: 90 Minutes (1.5 h) on Max
• Battery type   2x CR123A

Range of Detection

• Night Vision detection range: 300 Yrd / 274 m

Power Supply

• External Power Supply: 5V (via USB)
• Battery life   5 h recording / 8 Hours (no wifi + no recording)

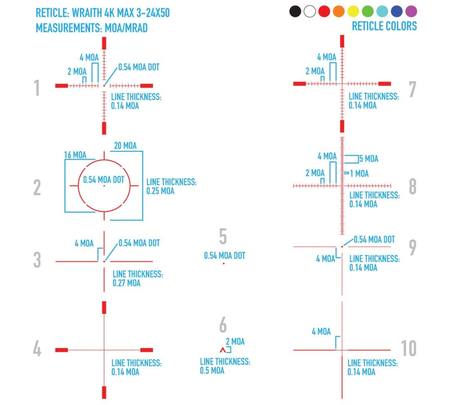

Reticle

• Windage & Elevation click value   0.3 MOA
• Adjustment range, Elevation   ~ 60 MOA
• Adjustment range, Windage   ~ 227 MOA
• Number of reticle options   10
• Colors   Black, white, red, blue, green, cyan, orange, yellow, magenta

Physical & operational characteristics

• Body Material   Aluminum
• Accessory rail mount: Picatinny
• Operating Temp,°F / C°   -4 to 140°F / -20 to 60°C
• Waterproof rating: IPX5 - (water resistant)
• Nitrogen Purged : No
• Shockproof: Approx 3 ft
• Maximum recoil (Calibre): .308
• Length, (in/mm)   12" | 305 mm
• Width, (in/mm)   1.875" | 63 mm
• Height, (in/mm)   3" | 75 mm
• Weight (with batteries) (oz/g):   34.6 oz / 980 g

Included in box

• 850nm IR Illuminator
• Objective lens cover
• Extended Picatinny mount
• Eye cup
• Quick Start Guide
