Sightmark T-5 Magnifier with LQD Flip to Side Mount

440836

In stock?

Christchurch
Auckland
Wellington
LOW
Hamilton
Dunedin
LOW
Napier
Sockburn
LOW
Motueka
Request
North Shore
Richmond
Invercargill
LOW
Supplier
Request

Seen it cheaper elsewhere?

Request a Price Match - Click here.

Share this with your friends!

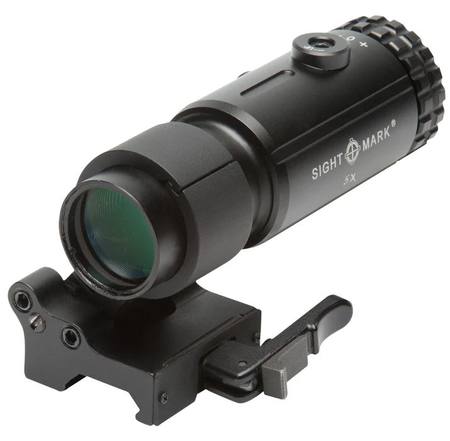

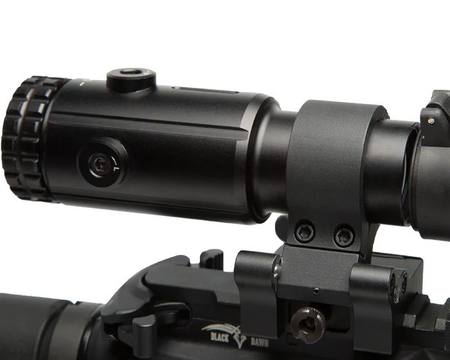

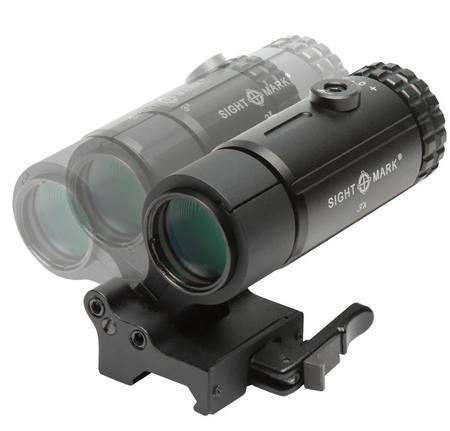

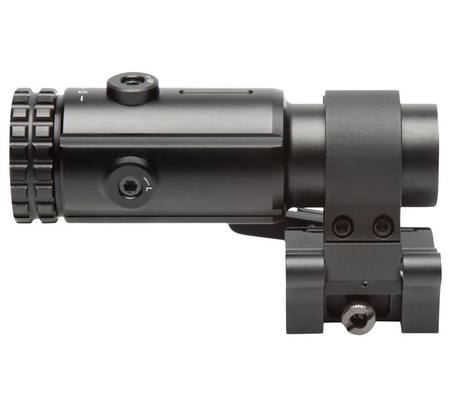

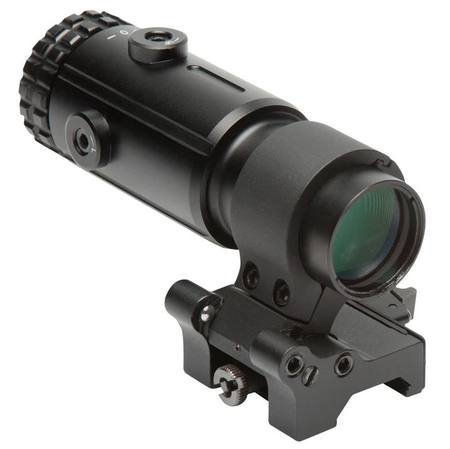

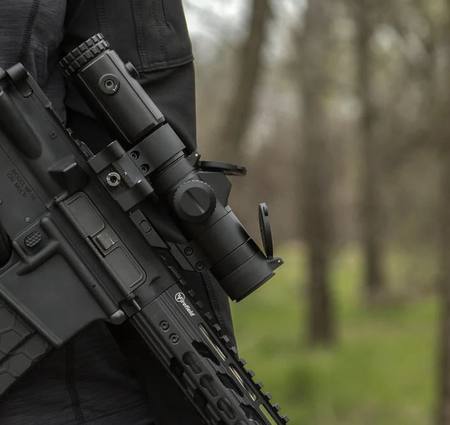

Built for shooting versatility, the Sightmark T-5 is a magnifier that mounts behind a reflex sight or red dot and provides an absolute co-witness. Instantly change the magnification of your close-range optic from 1x to 5x by using the T-5’s flip-to-side mount.

The magnifier’s streamlined, low drag design prevents it from snagging on clothing and equipment and makes the T-5 .7” shorter than the magnifier it’s replacing. Ideal for stretching your AR engagements out to 200 yards, an included LQD mount allows for rapid attaching/detaching in intense shooting situations.

The T-5’s aluminum construction is shockproof up to .308 caliber rifles and provides IP55 water resistant protection. Brightness and resolution are improved from fully multi-coated optics and external windage and elevation adjustments help shooters align the reticle of their red dot/reflex sight to the center of the magnifier’s point of view. The Sightmark T-5 includes flip-to-side LQD mount, adjustment tools and manual.

Included in Package
• Flip to side LQD mount
• Adjustment tools
• Manual

Features
• Locking, quick detach mount for quick and easy removal
• External windage/elevation adjustment for reticle alignment
• Absolute co-witness
• Fully multi-coated, scratch resistant
• 5x magnification increases engagement to 200 yards
• EOTech® and Aimpoint® compatible


Specifications:
• Magnification: 5x
• Objective Lens: 23 mm
• Diameter, Eyepiece: 32 mm
• Diameter, Exit Pupil: 4.6 mm
• Eye relief: 57 mm
• Field of view, m@100m: 9.8
• Field of view, ft@100yd: 29.6
• Diopter Adjustment: +3 to -3
• Diameter, Tube: 30 mm
• Maximum Recoil:  308 Caliber
• Shockproof : Yes
• Fog Proof : No
• IP Rating (waterproof) : IP55 - water resistant
• Finish/Color: Matte black
• Body Material: Aluminum
• Lens Coating: Full Multi-coated
• Mount Type: Picatinny
• Operating temperature: -30 to 71 C
• Length: 120 mm
• Width: 66.2 mm
• Height: 42.5 mm
• Weight: 408 g
