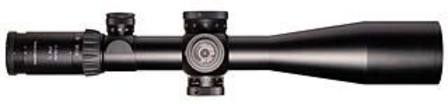

Schmidt & Bender PM II/LP 5-25x56 GEN 2 XR Illuminated Reticle Double Turn 0.1 MRAD Turrets

Schmidt and Bender Police Marksman II 5-25x56 side Parallax GEN 2 XR Illuminated reticle Double Turn 0.1 MRAD Turrets

Schmidt and Benders most popular scope, allowing precise shot placement to 2000 meters yet still presenting an exceptionally wide
field of view at low power. The 34mm main tube is an outstanding performer in poor light, resulting in one of the most
sophisticated, complete scopes ever built. This scope is chosen by many military and police forces around the globe to accommodate
precision sniper rifles.

First focal plane. The first focal plane reticle does not move point of aim and the Milradian Dots stay true to measurement the
whole way through the power range of the riflescope.

Unlike most long-range variables that offer only a 4x magnification multiple, the 5-25 x 56 provides a full 5x and a wider field of
view. Parallax adjustment in a separate turret, completely adjustable from 10 meters to infinity.

The illuminated reticle has 11 graduated settings offering precise control relative to ambient light. The scope includes Schmidt &
Bender's unique color-coded "Double Turn" elevation knob that gives the shooter instant reference to where the elevation is set. The
entire 100-minute adjustment range can be covered in just two turns of the knob. The user will never become "lost" within the
adjustment range.


Construction Aluminum tube, 34mm without rail Hard anodized black surface Reticle in first focal plane; second focal plane by special order.

Optical dataMagnification:5 - 25xField of view @ 100m: 5.3m - 1.5mExit pupil: 10.95mm - 2.28mmEye relief: min 85mm Twilight factor:14.1 - 37.4Light transmission: min 90% day & night Diopter setting: +2 to -3

Elevation adjustmentElevation increments: 0.1MradElevation range: 0 - 26 Mrad

Windage adjustmentWindage increments: 0.1Mrad per clickWindage range: ±6 Mrad

General dataParallax adjustable from 50m to infinity Reticle illumination:Settings 1-11: For use in low light conditions Battery:CR2032, 100+ hour life. Illumination is switched off automatically after six hours to conserve battery Weight:1080g Waterproof to 25m, 300 mbar inner pressure
