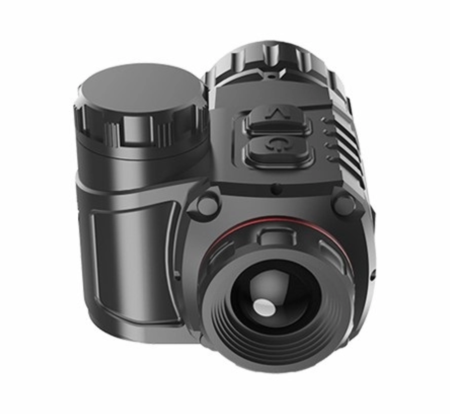

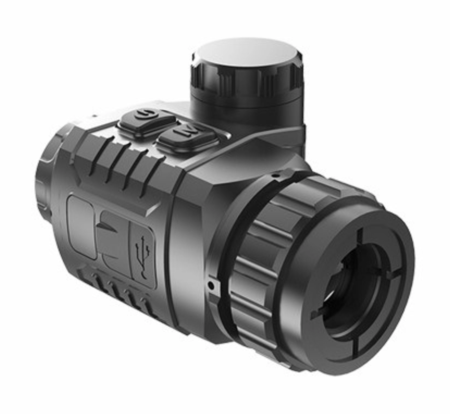

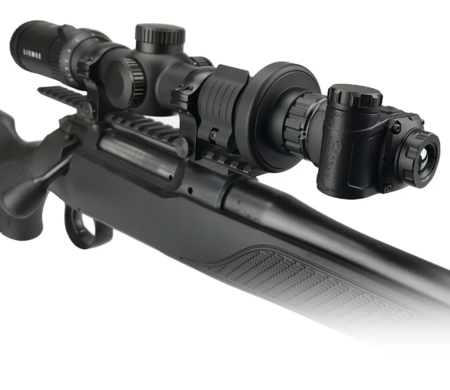

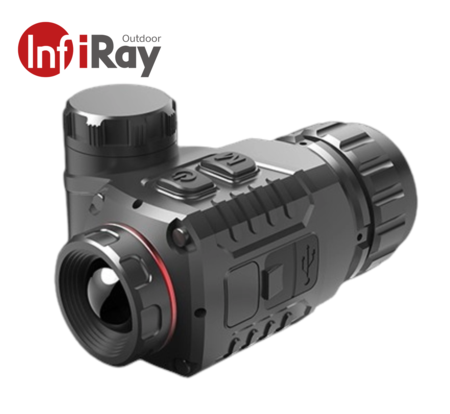

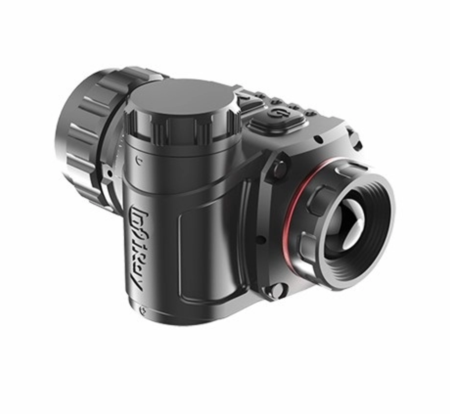

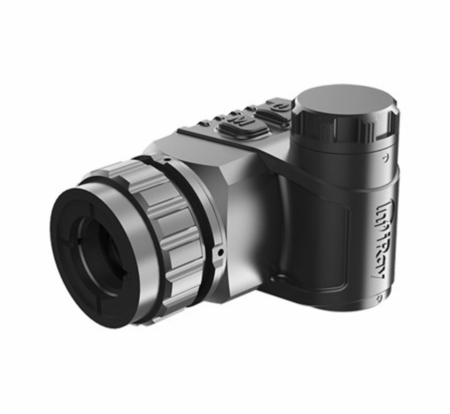

InfiRay CTP13 Clip on Thermal

The CTP13 comes with a quality 13mm lens to capture thermal signatures. The FOV on this thermal clip-on reads 13.5 x 10.1 degrees.

Inside the housing of the CTP13 you'll find the (uncooled, 12µm) 256 by 192px thermal imaging sensor with a refresh rate of 25Hz. The NETD (Noise Equivalent Temperature Difference) of this thermal clip-on is <40mK.

The dimensions of this thermal clip-on are 79 x 52 x 46mm (length/width/height) and weighs 140g. This device is rated IP67. It can withstand dust, shocks, water (splashes) and submersion under water. Operating temperatures range between -20°C and 50°C.

The CTP13 is suitable for hunting.

Features:

• Ultra compact and lightweight
• IP67 waterproof
• Low power consumption
• OLED Display

DRI Ranges
DRI stands for Detection, Recognition and Identification and is based on the widely used Johnson's criteria.

• Detection Detect if an object is present
• Recognition See what type of object it is (i.e. person, vehicle, airplane)
• Identification For example what something is

Specifications:

• Lens: 13 mm
• Optical zoom: 1 x
• FOV (h/v): 13.5 ° / 10.1 °
• Thermal type: Uncooled
• Sensor resolution (h/v): 256 pixels / 192 pixels
• Pixel pitch: 12 µm
• Sensitivity: 40 mK
• Battery Type: CR123
• Display resolution (h/v): 1024 pixels / 768 pixels
• Refresh rate: 25 Hz
• Output screen color: Full color
