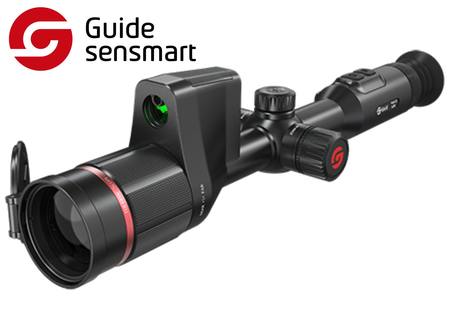

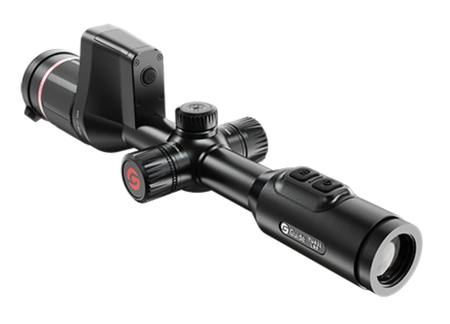

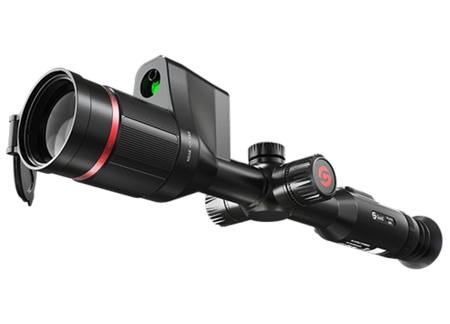

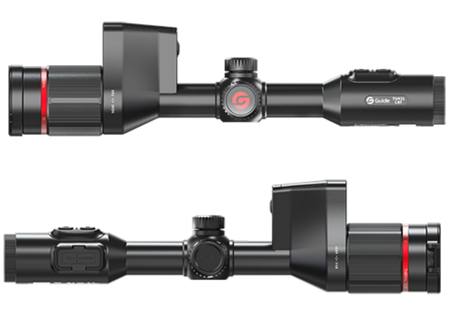

Guide TU431 Gen2 LRF Thermal Scope 35mm

The TU Gen2 Series is equipped with a high-sensitivity thermal sensor of 12μm and a 1440×1080 HD AMOLED display. Paired with the robust PureIR image algorithm, it provides users with a more vivid and detailed visual experience.

With the laser rangefinder seamlessly integrated into a slim-design scope, the TU Gen2 LRF Series enables precise detection of targets at distances of up to 1,500 meters, empowering hunters with a reliable perception of distance at the hunting site to make accurate shots. The TU Gen2 Series has undergone meticulous optimization in its detailed design, elevating user-friendly operation. Furthermore, the battery life has seen a substantial extension, resulting in a 20% increase in duration.

High Definition Thermal Sensor
High-quality thermal imaging with 400×300@12μm resolution with clear distinctions allows for improved recognition of animals, their body parts, and even minute elements such as branches, leaves, grass, and the landscape.

1440×1080 AMOLED Display
The heat signature captured by the thermal image can be shown on the display using the picture-in-picture (PIP) feature, significantly enhancing the comfort of observation.

PureIR Adaptive Dynamic Filtering Algorithm (PureIR)
The PureIR combining 3DNR and PureIR adaptive filtering algorithms delivers high-sensitivity thermal images, reducing image distortion and enriching detail even for distant targets.

Fast Detection 1000m LRF
The compact ranging module, which has been recently created, offers accurate and rapid detection, allowing you to identify targets at distances of up to 1500 meters during nighttime hunting, thus enhancing your hunting efficiency.

Infrared detector
• Detector type: Uncooled VOx Infrared
• Detector resolution and pitch: 400 × 300, 12 μm
• Spectral range: 8 to 14 μm
• NETD: ≤30 mk
• Frame rate: 50 Hz

Lens
• Focal length: 35 mm; F1.0
• Focus: Manual
• Field of View: 7.8° × 5.9°
• Optical zoom: 2.65x
• Digital zoom: 1x ~ 4x

Display
• Display type: 0.39" AMOLED
• Resolution: 1440 x 1080
• Eyepiece: Exit pupil distance≥ 48mm; Diopter: +/- 4 to; Zoom: 14x
• Video output: Digital video

Power
• Battery type: Single Replaceable 18650 battery
• Battery life: ≥ 12 hours

Interface
• USB: Type C
• Video Interface: Micro HDMI
• Tube Diameter: 30mm
• Memory Capacity: 128 gb
• Language Settings: English / Russian / German / French / Italian / Spanish / Japanese / Korean / Polish

Range Performance
• Detection range: 1000 m

Laser rangefinder
• Max. measuring range: 1000m

Functions
• Scene modes: Enhanced, Highlight and Natural
• Color palettes: Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot
• PIP: Available
• Hot spot tracking: Available
• WIFI: 2.4 G
• Supported Application: TargetIR
• Firmware OTA: Upgrade device firmware via app connection

Environmental
• Operating temperature range: -30°C to 50°C
• Storage temperature range: -40°C to 70°C
• Humidity: 10 % to 95 % non-condensing
• Shock: 800 G at 1 ms half-sine pulse
• Encapsulation: IP67
• Certification: FCC, CE, RoHS, EAC, un38.3

Physical:
• Weight: ≤ 1250 g
• Dimensions: 377 × 107 × 99 mm

Included in box...
• Device
• Lens cap
• Eye masks
• 5V2A adapter (US, Britain, Australia and Europe)
• Desktop charger
• Customized battery ×2
• Extended clip ×2
• USB Type-C cable
• Micro HDMI cable
• Quick start guide
