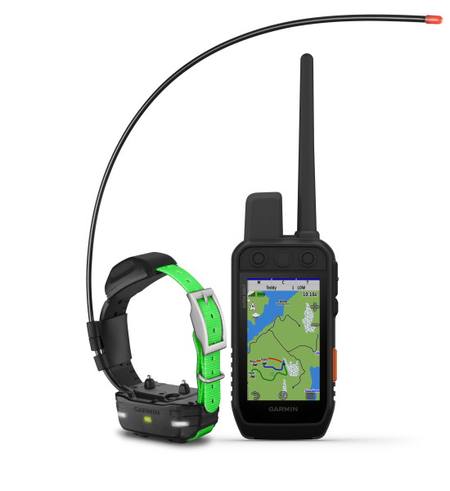

Garmin Alpha 200i Handheld & TT 15 Mini Dog Collar GPS Tracking System

Strong connection, strong bond.

Track and train your dogs with the Alpha 200i system, featuring inReach^® Iridium satellite technology, a sunlight-readable 3.5 inch capacitive touchscreen and user-friendly, six-button design.

Take dog tracking and training to the next level.

TRACK YOUR PACK: Monitor up to 20 dogs from up to 14.5 kilometres (depending on dog device) with a 2.5-second update rate.

DOG LIST/GROUP MANAGEMENT: Keep inactive dogs in your dog list, and manage active groups so you don't have to add and remove dogs for every hunt.

SIX-BUTTON DESIGN: Use dedicated buttons for fast training cues and minor adjustments in the field.

18 LEVELS OF STIMULATION: Momentary and continuous stimulation options let you customise training for each dog.

TONE/VIBRATION: Issue different levels of audible tone or vibration commands for quick adjustments to individual dogs.

PRO VIEW COMPASS: The pro view compass mode gives you simple, at-a-glance tracking that shows which direction and how far away your dogs are, plus you will see when a dog is Treed or OnPoint.

Navigate your surroundings.

MULTI-GNSS SUPPORT: Access multiple global navigation satellite systems (GPS and Galileo) to track your pack with greater accuracy than GPS alone.

TOPOACTIVE MAPS: Our preloaded TopoActive mapping provides detailed views of terrain contours, topographic elevations, summits, parks, coastlines, rivers, lakes and geographical points.

BIRDSEYE SATELLITE IMAGERY: Download BirdsEye Satellite Imagery directly to the handheld for better-than-real-life views of your route, trailheads, clearings and more.

NAVIGATION SENSORS: A barometric altimeter helps you accurately monitor ascent and descent and see short-term trends in air pressure, and the built-in tilt-compensated three-axis electronic compass keeps your bearing — whether you're moving or not.

SEE IT ALL: The sunlight-readable 3.5 inch capacitive touchscreen display makes it easy to see and interact with your maps, dog data and more.

STAY ON THE MOVE: Replaceable battery lasts up to 20 hours, or up to 15 hours with inReach technology enabled.

ADDITIONAL MAPPING: The microSD^™ card slot allows you to load more mapping options, such as TOPO and HuntView Plus maps (sold separately).

Stay in touch using inReach technology.

TWO-WAY MESSAGING: Exchange text messages with loved ones, post to social media, or communicate inReach to inReach in the field (satellite subscription required).

INTERACTIVE SOS: In case of emergency, trigger an interactive SOS message to GEOS, a professional 24/7 global monitoring and response centre (satellite subscription required).

LOCATION SHARING: Track your location, and share it with those at home or out in the field so they can see your progress or ping your device for your GPS location and more (satellite subscription required).

100% GLOBAL IRIDIUM^® SATELLITE NETWORK: Instead of relying on mobile coverage, now your messages, SOS alerts and tracking are transferred via the global Iridium satellite network (satellite subscription required).

Specifications:
General
• PHYSICAL DIMENSIONS: 6.8 x 16.2 x 3.4 cm *dimensions do not include antenna
• TOUCHSCREEN: Yes
• DISPLAY SIZE: 4.7 W x 7.7 H cm; 3.5 inch diag (88.9 mm)
• DISPLAY RESOLUTION: 282 x 470 pixels
• DISPLAY TYPE: Transflective, colour TFT touchscreen
• WEIGHT: 280 g with standard antenna and battery
• BATTERY TYPE: Rechargeable lithium-ion (included)
• BATTERY LIFE: Up to 20 hours; up to 15 hours with inReach® technology enabled
• WATER RATING: IPX7
• HIGH-SENSITIVITY RECEIVER: Yes
• INTERFACE: High-speed USB
• MEMORY/HISTORY: 16 GB

Maps & Memory
• PRELOADED MAPS: Yes (TopoActive)
• ABILITY TO ADD MAPS: Yes
• BASEMAP: Yes
• AUTOMATIC ROUTING (TURN BY TURN ROUTING ON ROADS) FOR OUTDOOR ACTIVITIES: Yes (with optional mapping for detailed roads)
• BIRDSEYE: Yes, direct to device (no annual subscription required)
• EXTERNAL MEMORY STORAGE: microSD™ card (not included)
• WAYPOINTS/FAVORITES/LOCATIONS: 10,000
• TRACKS: Up to 20 dogs (TT 15/TT 15 mini and T5/T 5 mini) and buddies (Alpha 100 and Alpha 200i) simultaneously
• TRACK LOG: 20,000 points, 250 saved gpx tracks, 300 saved fit activities
• ROUTES: 250
• STORED CONTACTS: 250 dogs
• GROUP MANAGEMENT: Yes

Sensors
• BAROMETRIC ALTIMETER: Yes
• COMPASS: Yes (tilt-compensated 3-axis)

Safety and Tracking Features
• LIVETRACK: yes (with Garmin Explore™)

Outdoor Recreation
• SUN AND MOON INFORMATION: Yes
• CUSTOM MAPS COMPATIBLE: Yes

inReach® Features
• INTERACTIVE SOS: Yes
• SEND AND RECEIVE TEXT MESSAGES TO SMS AND EMAIL: Yes
• EXCHANGE LOCATIONS WITH OTHER INREACH DEVICE: Yes
• VIRTUAL KEYBOARD FOR CUSTOM MESSAGING: Yes
• SEND WAYPOINTS TO MAPSHARE DURING TRIP: Yes
• SEND ROUTE SELECTION TO MAPSHARE DURING TRIP: Yes

Two-way Radio Features
• FREQUENCY BAND: VHF
• RANGE: TT 15/T 5, 14.5 kilometres; TT 15 mini/T 5 mini, 6.5 kilometres

Outdoor Applications
• COMPATIBLE WITH GARMIN EXPLORE™ APP: Yes
• GARMIN EXPLORE WEBSITE COMPATIBLE: Yes

Connections
• WIRELESS CONNECTIVITY: Yes (Wi-Fi®, Bluetooth® and ANT+®)

Garmin TT 15 Mini GPS Dog Collar

A top-mounted, high-sensitivity GPS/GLONASS receiver, TT 15 mini dog device uses 18 levels of continuous and momentary stimulation, plus audible tone and vibration when used with a compatible dog device.

Rugged and water-resistant to 10 meters, this tracking and training dog device with collar is tough enough to run wherever your dog runs, up to 4 miles away. The stimulation features let you train each dog separately — traditional stimulation allows you to make quick changes (low, medium or high) within a predetermined stimulation level (1-6), whereas linear stimulation allows progressively more stimulation from levels 1 to 18. You can remotely operate the LED beacon lights, built in to the dog device, to help locate your dog in low-light conditions.

TT 15 mini ships with a 3/4-inch red collar strap. Replacement straps are available in multiple colors (sold separately). TT 15 mini is compatible with track only handhelds but the training tools will not function. The T5 mini is recommended for track only handhelds.
