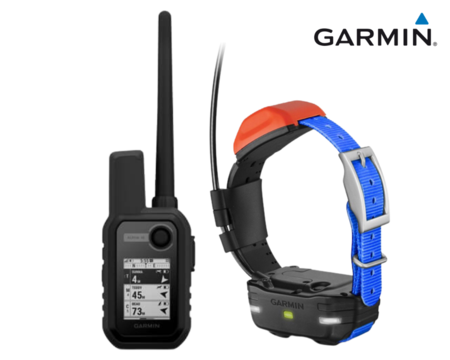

Garmin Alpha 10 GPS & T5 Mini Collar Package
The Garmin Alpha 10 is a small device with big tracking and training potential.
• When you’re on the move, this compact GPS device won’t weigh you down.
• Know your dog’s location, wherever the hunt takes them.
• Always on the go? Mount Alpha® 10 in your truck or anywhere else to keep it close.
• It’s up to you. Use Alpha® 10 on its own or with other dog tracking devices.
• See your dog’s location from the driver’s seat of your truck or even from your wrist.
• Stay on the hunt for longer with up to 1 week of battery life (40 hours of use).
For more flexibility on the hunt, the compact Alpha® 10 handheld can be used on its own, connected to your compatible smartphone or connected to other Garmin dog tracking devices. Map, track, sync and share from anywhere using the Garmin Explore app.
TRACK YOUR PACK. Alpha® 10 works with T5 and TT™ 15 dog devices to monitor up to 20 dogs from up to 10 kilometres with a 5-second update rate.
MULTI-GNSS SUPPORT. Access multiple global navigation satellite systems (GPS and Galileo) to track in more challenging environments than GPS alone.
HUNT-READY BATTERY LIFE. With up to a full week’s worth of battery life (40 hours of use), you’ll stay charged and ready for action, even on multiday trips.
18 LEVELS OF STIMULATION. Momentary and continuous stimulation options let you customise training for each dog (when paired with select dog devices).
TONE/VIBRATION. Issue different levels of audible tone or vibration commands for quick adjustments to individual dogs (when paired with select dog devices).
GARMIN EXPLORE™ APP. Pair with the Garmin Explore app on your compatible smartphone to see real-time dog tracking information, save collections of dog tracks and replay tracks to see exactly what happened during your hunt.
FOLLOW THE ACTION. Track fellow hunters by pairing Alpha® 10 with other compatible Alpha and Astro® handheld devices.
MORE WAYS TO TRACK ON THE GO. See the pack’s location from your vehicle with the Montana, Garmin DriveTrack™ 71 sat-nav — or from your wrist with your Instinct®, tactix® or fēnix® GPS watch.
PHYSICAL DIMENSIONS: 2.3 x 4.8 x 1.1″ (5.8 x 12.1 x 2.9 cm); dimensions do not include antenna
DISPLAY SIZE: 1.8″ (45 mm) diagonal
DISPLAY RESOLUTION: 128 x 128 pixels
DISPLAY TYPE: Sunlight-readable, monochrome, transflective memory-in-pixel (MIP)
WEIGHT: 5.6 oz (160 g) with standard antenna and spine mount attached
BATTERY TYPE: Rechargeable internal lithium-ion; nonreplaceable
BATTERY LIFE: Up to 1 week (40 hours of use)
WATER RATING: IPX7
HIGH-SENSITIVITY RECEIVER: Yes (GPS and Galileo)
COMPASS: Yes (tilt-compensated 3-axis)
Two-way Radio Features
FREQUENCY BAND: MURS
RANGE: TT 15/T 5 = 14.5 kilometres; TT 15 mini/T 5 mini = 6.5 kilometres
COMPATIBLE WITH GARMIN EXPLORE™ APP: Yes
GARMIN EXPLORE WEBSITE COMPATIBLE: Yes
WIRELESS CONNECTIVITY: Yes (Bluetooth® Low Energy and ANT+®)
ADDITIONAL: Track storage, up to 10 days
PRODUCT NUMBER: 010-02290-53
A top-mounted, high-sensitivity GPS/GLONASS receiver, T 5 mini dog device uses LED beacon lights activated from its compatible handheld device. The lights work in low-light conditions and at night, and are visible up to 100 yards away. The Garmin T5 Mini GPS Collar is the extra tracking only collar that will work with Alpha 100 and Astro 430 dog tracking handheld. This small dog GPS tracking collar will suits dogs from 7kg in weight. The T5 mini collar has up to 6 km range. And it is fully waterproof IPX7 rating (up to 10 metres under water), rechargeable with 4 hours fast charge (up to 30 hours per full charge).
Rugged and water-resistant to 10 meters, the tracking-only dog device with collar is tough enough to run wherever your dog runs, up to 4 miles away. T 5 mini ships with a 3/4-inch blue collar strap
• T 5 mini dog device with rechargeable lithium-ion battery
• 3/4" blue collar strap
• 18.5" standard antenna
• Charging cable
• AC adapter
• Vehicle power cable
Physical Specifications & Performance
• Unit dimensions (WxHxD): 3.5" x 1.75” x 1.85" (8.9 x 4.4 x 4.7 cm); Mini: 3.1" x 1.8” x 1.4” (7.8 x 4.5 x 3.5 cm)
• Weight: 5.1 oz (145 g) for transmitter and antenna (without collar); 7.0 oz (198 g) total weight (with collar)
• Battery type: rechargeable lithium-ion pack; user replaceable
• Battery life: 16-30 hours
• Range: 4 miles
• Interface: USB
• Water rating: 1 ATM (10 meters)
• Neck size: Minimum of 9.5” (24 cm) in circumference
• High-sensitivity GPS/GLONASS receiver: Yes
• GPS antenna: top, orange
• Stimulation/Vibration/Tone: No
• LED beacon lights: Yes
• Frequency band: MURS (The T 5 mini is only compatible with the Astro® 320, Astro 430 and the Alpha™ 100. T 5 mini can be configured for operation with either handheld but cannot be tracked simultaneously by both the Astro 320 and the Astro 430)
• Rescue mode: Yes
• Replaceable collar straps: Yes
• Collar compatibility: 3/4” (1.9 cm)
• Product Number: 010-01486-13
