Element Helix 4-16x44 FFP (First Focal Plane) | MOA & MIL Reticles Rifle Scope

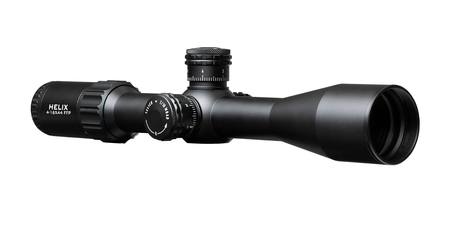

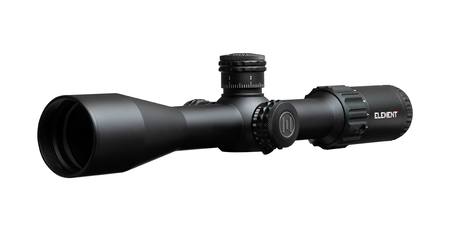

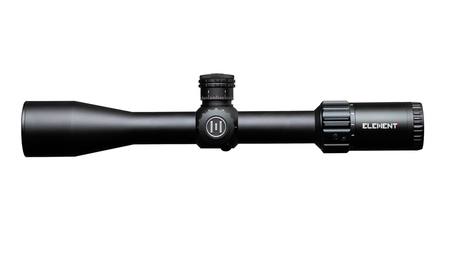

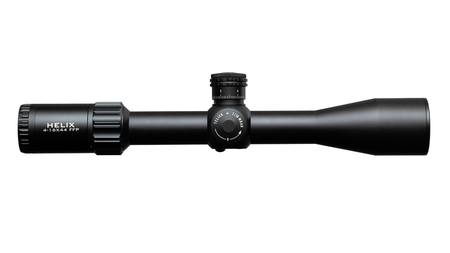

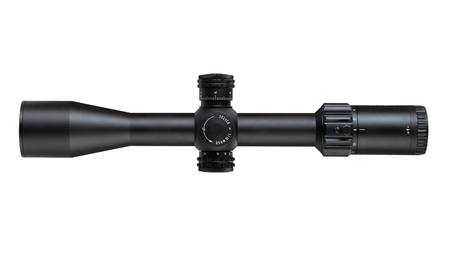

Element Helix 4-16x44 Rifle Scope

The latest addition to our lineup, the 4-16×44 Helix FFP riflescope offers all the brilliant features and rugged reliability that the 6-24×50 scope does, but with a distinct advantage: This is the lightest, most compact scope we have made to date.

Element Optics has aimed to keep things simple but has focused on intuitive features and precision internals to give you peace of mind, whether you are cranking your turrets for a long shot, or following a deer through the trees at 4x magnification with this riflescope.

The ever-popular APR-2D family of reticles provide everything you need in a sensible layout, thanks to valuable input from experienced Pro Staff and customer feedback, and the 80 MOA of internal elevation travel makes this a serious contender for long-range shooters needing an affordable, lightweight riflescope. Don’t overlook the little guy – He punches well above his weight!

APR stands for “All-Purpose Reticle”, and that’s the concept behind the design of the APR C & D variants. The “C” is the “clean”, or simpler of the two, with fewer markings than the “D” variant. The fine centre dot provides a precise aim point, and hash marks at 1, 2 and 4 MOA allow for elevation & wind holds.

Click Type & Available Reticles

MOA Clean - APR-1C	MOA Tree - APR-2D
MIL Clean - APR-1C	MIL Clean - APR-2D

Scope Features

1. 30mm Main Body Tube
2. Compact, Lightweight design
3. First Focal Plane Reticle
4. Aircraft Grade Aluminium
5. Side Parallax: 15yds-Infinity
6. Fully Multi-Coated Lenses
7. Tool-free Resettable Turrets with 6 MRAD / 15 MOA per Revolution
8. Hard Mechanical Zero-Stop
9. Removable Magnification Throw Lever
10. Waterproof, Fogproof, Shockproof & Nitrogen Purged
11. Sunshade, Lens Cloth & Rubber Lens Caps include

Scope Specifications

• Magnification: 4-16x

• Objective Lens Diameter: 44 mm

• Focal Plane: First Focal Plane

• Finish: Black

• Field of View @100m: 26.2 - 6.55 ft

• Tube Size: 30mm

• Exit Pupil: 13.5 - 3.3 mm

• Eye Relief: 3.7"

• Minimum Parallax: 15 Yrds / 15 M

• Length: 14.2" / 360 mm

• Weight: 23.8oz / 675gr

• Type MOA MIL

• Click Value: 1/4 MOA 1/10 MIL

• Full Revolution: 15 MOA 6 MIL

• Elevation Adjustment: 80 MOA 23.3 MIL

• Windage Adjustment: 45 MOA 13.1 MIL

Included in box...

• Element Helix Scope

• Spring-loaded flip caps - designed to be kept on and shut for close-ranged shots

• Rubber lens cover

• Throw lever

• Turret thread protector rings - if want to keep the turret caps off

• 3" sunshade

• Lens cloth

• Allen key (to remove the lug screw for the throw lever to go in)

• Element Optics sticker

• Manual
