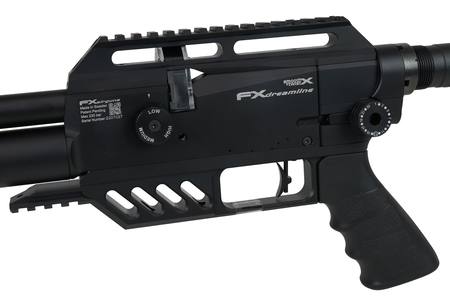

.22 FX Dreamline Tactical PCP Air Rifle 920fps

The Dreamline Tactical brings AR options like the mil-spec receiver tube, full picatinny scope rail, and more to the airgunner who would like to add common AR parts and options to their airgun.

With the arrival of the FX Dreamline, innovation that was previously only dreamed about, is now a reality. The FX Dreamline is the first fully modular airgun system in the world. The modular design allows the rifle to change to any of the Dreamline configurations. Today’s hunting bullpup can be converted for the weekend field target match. The classic sporter rifle can be switched out to house all your favourite AR furniture and accessories. Whatever you can imagine is possible with the FX Dreamline.

All FX Dreamline models utilize a large capacity rotary magazine. This is the same magazine used in the FX Crown and is indexed with the smooth cocking side lever. This newly designed side lever takes the ease of cocking a rifle to a whole new level as it is nearly effortless to cock.

Most Dreamline models offer a standard 220 cc cylinder filled up to 230 BAR, but there are also bottle versions of many of the configurations which will allow for more air and higher shot counts. ½” UNF threads on the barrel allow for the optional addition of a moderator. The FX Dreamline also features the world-famous FX match grade trigger, set at 15 ounces from the factory.

Please note that all PCP air rifles require a firearms licence to purchase, and they need to be stored and treated the same as firearms.

Features:

• Interchangeable Barrel Liner System (with changeable core barrel liner for various twist rates)
• AMP Externally adjustable pressure regulator

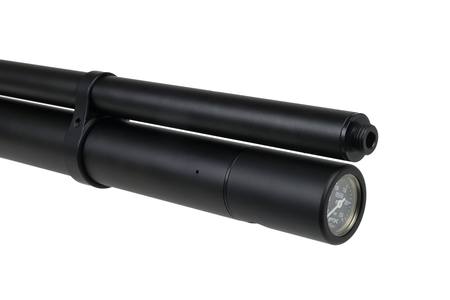

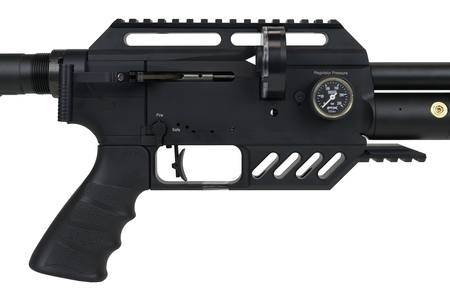

• Pressure Gauge for both Airtube & Regulator Pressure
• 18 shot magazine made from injected-moulded POM
• AR15 Hogue pistol grip
• Built-in Picatinny rail
• Adjustable FX Match Trigger

Specifications:

• Calibre: .22
• Velocity: 920fps
• Action: Sidelever; Straight pull
• Fill Pressure: 230 Bar; 3300 PSI
• Air Capacity: 220 c
• Capacity: 18
• Barrel: FX Smooth twist X, Match Grade, Free floating
• Trigger: Adjustable match trigger

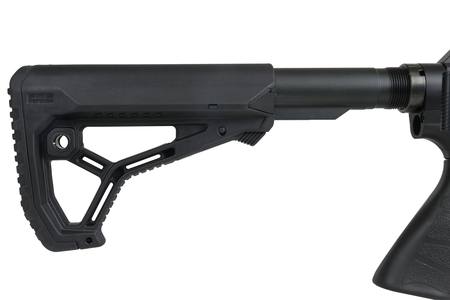

• Stock: AR15 Ready (not included)
• Safety: Manual
• Scopeability: Full Picatinny rail
• Weight: 2.45 kg
• Overall Length: 890 - 970 mm
• Ammunition: Any .22 cal pellet
• Trigger Pull: Adjustable (15 ounces from factory)
• Barrel Length: 500 mm
• Barrel thread/Muzzle: 1/2" UNF (1/2x20)

The beauty of the FX Dreamline starts with the revolutionary world class FX Smooth Twist X barrel (STX). This is the same barrel housing and liner system as found on other elite rifles such as the FX Impact, FX Crown and FX Wildcat. The STX barrel allows the Dreamline the unique ability of changing both the caliber of the gun as well as the inner liner of the barrel to allow for different twist rates and other bore specifications. This provides a tailored barrel to meet the vast array of projectiles available today.

The Dreamline also includes the new AMP Regulator (Adjustable Match Precision Regulator). This robust regulator is revolutionary in that it can be adjusted externally either to higher or lower pressures without the need to remove pressure from the gun. The AMP regulator also uses the latest in high performance parts to provide precision accuracy that holds up over time.

The FX Dreamline features the same adjustability as found on other premium FX rifles. All adjustments can be fine tuned including valve flow, hammer tension, and regulator pressure. These adjustments are done quickly and easily allowing the shooter find harmonic balance and maximize the performance and accuracy of the Dreamline.

Basic tips for PCP operation.

1. Make sure the barrels are cleaned prior to use the first time. Don’t use solvent. Mineral based cleaners like balistol should be used.
2. Don’t use a brush or anything abrasive on the barrels just oil and cotton patches
3. Use silicon oil and grease for oiling and lubricating
4. Never let the tank drop below 1000PSI unless it its being emptied for a repair.
5. If filling from a scuba tank purge the air very slowly
6. If filling from a hand pump take breaks every 2 minutes to allow the air in the pump to cool failure can make the seals in the gun and the hand pump wear faster than needed
7. Never exceed the max limit of the tank on the rifle if it is not written on the tank stay below 200BAR or 20MPA
8. Most PCP air rifles will prefer heavier weighted pallets

Important note: it is recommended to not run the rifle under 10BAR to avoid damage to the valve system. Also avoid shooting the rifle until out of gas as this runs the risk of a pellet lodging in the barrel

Purchase of this item requires a firearms licence, you will need to complete a Police Order Form and take it into your local police station to have it signed off. The form can be found from the link below.

Police Order Form

(RAG-019)
