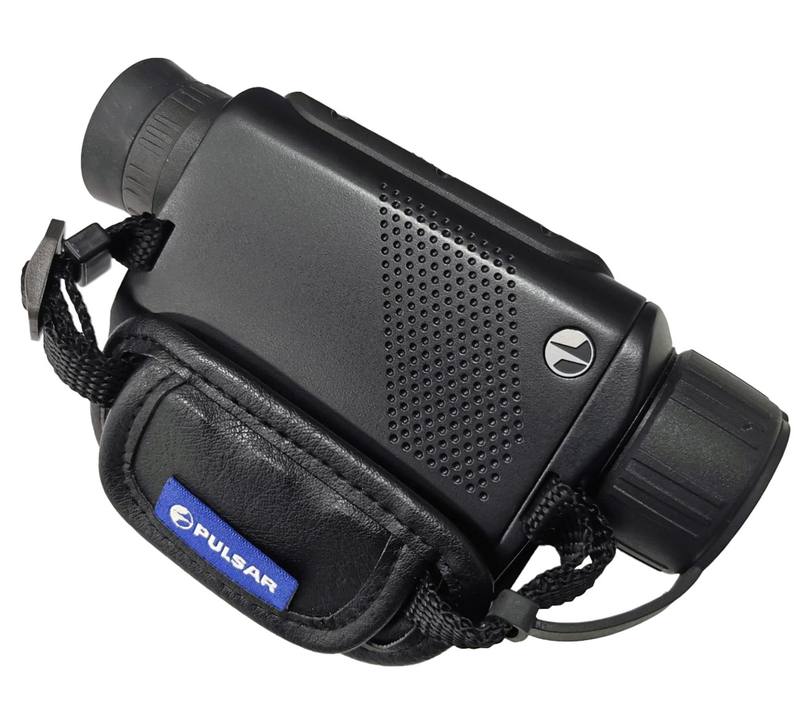

Pulsar Axion 2 XQ35 Pro Laser Rangefinder Monocular Handheld Thermal

The Axion 2 Series LRF is a great addition to your hunt. Combining both Laser Rangefinding & Thermal imaging into one unit will save you time & keep things all in one place while out hunting.

The Pulsar Axion 2 replaces the previous model, the Pulsar Axion. It has the following new benefits:
• Wider field-of-view
• Longer lasting battery life
• Stream Vision 2 compatible
• New dual-band WiFi module

Difference in models

• The XQ35 is the base model of the Axion 2 LRF Series - Pulsar Axion 2 XQ35 LRF Thermal Monocular

• The XQ35 Pro has a sub 25 milliKelvins Sensor which allows it to be more sensitive to temperature differences

• The XG35 is the top of the range for the Axion 2 LRF series (benefits are compared below) - Pulsar Axion 2 XG35 LRF Handheld Monocular Thermal
1.) Better Sensor: 640x480 (compared to 384x288 on XQ35)
2.) Better Display: 1024x768 (compared to 640x400 on XQ35)
2.) Further Detection range: 1750 metres (compared to 1300 on XQ35)
3.) Higher Zoom: 2.5 - 20 (8x zoom) (compared to 2 - 8 (4x zoom) on XQ35)
Please Note: As the XG35 is more powerful it does have a shorter run time of 7 hours

Axion 2 LRF thermal imaging monoculars are designed for use both at night-time and during the day and provide exceptional image quality even in adverse weather conditions (fog, smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target detection.

Unlike night-vision devices based on electron-optical converters, thermal imaging devices do not need an external light source and are resistant to bright light.

Axion 2 LRF thermal imagers are designed for various applications including hunting, observation, security, terrain orientation, search and rescue operations, etc.

Axion 2 LRF thermal imagers are equipped with a built-in laser rangefinder with a range of up to 1000 m and a measurement accuracy of ± 1 m.

• Compact and lightweight
• Functional and ergonomic design
• 8-colour display palette
• 3 calibration modes: Manual, Semi-Automatic, Automatic
• Detection range up to 1300 m/1422 yds
• Smooth digital zoom 2-8x
• Three levels of sensitivity enhancement: Normal, High, Ultra
• Integrated laser rangefinder
• Display-Off function
• Defective pixel repair
• Updatable firmware
• Wide operating temperature range (-25°С to +40°С / -13°F to +104°F)
• Fully waterproof (IPX7 rated)
• Tripod mount

Video/Audio Recording

• Built-in video and sound recorder
• Integration with iOS and Android devices
• Wi-Fi remote control and viewing using a smartphone
• Storing photos and videos in Cloud when using the Stream Vision 2 App

Battery Pack

• Quick Change Li-Ion Battery Pack APS 5
• Charging from USB Power Bank
• Quick-Charge power delivery​

Main
• Sensor: 384x288 pix. @ 17 µm (NETD <25 mK)
• Objective lens: F35 / 1.0
• Magnification: 2 – 8x (x4 zoom)
• Field of view (HxV) @ 100 m: 10.7х8° / 18.2x13.7°
• Detection range: 1300 m
• Display Type: AMOLED
• Display Resolution: 640x400 Pixels

Sensor
• Sensor Type: uncooled
• Resolution: 384x288 Pixels
• Pixel pitch: 17µm
• NETD: <25 mk
• Frame rate: 50 Hz

Optics
• Objective lens: F35 / 1.0
• Magnification: 2 – 8x (x4 zoom)
• Field of view (HxV) @ 100 m: 10.7х8° / 18.2x13.7°
• Eye relief: 14 mm

Range Performance
• Detection range: 1300 m

Laser Rangefinder
• Wavelength: 905 nm
• Max. measuring range: 1000 m
• Measurement accuracy: ± 1 M

Video Recorder
• Video/photo resolution: 528x400 Pixel
• Video/photo format: .mp4 / .jpg
• Built-in memory: 16GB

Wi-Fi
• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GHz

Environmental Characteristics
• Degree of protection, IP code (IEC60529): IPХ7 (waterproof)
• Operating temperature range: -25 to +40°С

Connections and Compatibilities
• Mount type:1/4"
• Supported Application: Stream Vision 2

Power Supply
• Output voltage:    3.0 – 4.2V
• Battery type: APS 5 Li-ion Battery Pack
• Capacity: 4900mAh
• Operating time on battery pack (at t=22°C): up to 11 Hours
• External power supply: 5V, 9V (USB Type-C Power Delivery)

Weight & Size
• Body material: Magnesium alloy
• Dimensions: 152 x 74 x 75mm
• Weight: 0.47 Kgs(with the APS5 battery)

In The Box
• Axion 2 LRF Thermal Monocular
• APS 5 Rechargeable Battery
• (2) Battery-locking Covers
• Power Adapter
• USB Type-C Cable
• Carrying Case
• Hand Strap
• Quick Reference User Manual
• Lens Cleaning Cloth
• Warranty Information
• Tripod Adapter

The Warranty period on new thermal optics:
• Pulsar: 3 Year manufacturers warranty
• Guide: 1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty

Please note: Manufacturers warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period than what is specified for the units above. The warranty does not cover misuse or accidental damage caused by the operator.
